Liebherr

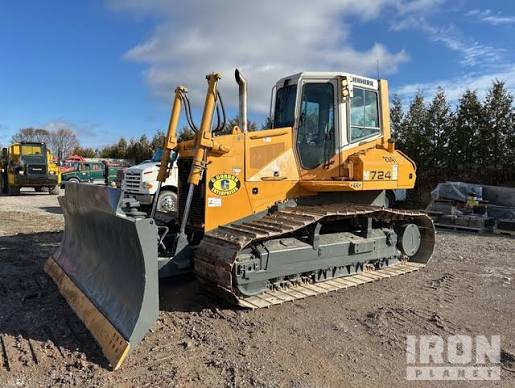

PR724 LGP
- Operating Weight
- 39,738 lb
- Max Speed - Forward
- 6.9 mph
- Gross Power
- 160.0 hp
- Net Power
- 158.0 hp
1 / 5
Image 1 of 5
Specifications
37 data points
Operating Specifications
| Operating Weight | 39,738 lb |
|---|---|
| Fuel Capacity | 96.5 gal |
| Cooling System Fluid Capacity | 8.0 gal |
| Final Drives Fluid Capacity | 4.9 gal |
| Engine Oil Capacity | 5.1 gal |
| Hydraulic Fluid Capacity | 42.8 gal |
| Operating Voltage | 24 V |
| Alternator Supplied Amperage | 55 A |
Engine
| Engine Model | D 924 TI-E |
|---|---|
| Displacement | 403 in³ |
| Power Measured @ | 1,800 rpm |
| Gross Power | 160.0 hp |
| Net Power | 158.0 hp |
| Number of Cylinders | 4 |
| Aspiration | Direct injection turbo-charged |
Hydraulic System
| Pump Flow Capacity | 46.0 gal/min |
|---|---|
| Relief Valve Pressure | 2,900 psi |
| Pump Type | swash plate piston pump |
Dimensions
| Ground Clearance | 19 in |
|---|---|
| Height - Top of Cab | 126 in |
| Length of Track on Ground | 127 in |
| Width Over Tracks | 128 in |
| Length w/o Blade | 165 in |
Transmission
| Max Speed - Forward | 6.9 mph |
|---|---|
| Max Speed - Reverse | 4.9 mph |
| Transmission Type | Infinitely variable hydrostatic travel drive independent drive for each track frame |
| Number of Forward Gears | 3 |
| Number of Reverse Gears | 2 |
Undercarriage
| Ground Pressure | 5 psi |
|---|---|
| Track Gauge | 83 in |
| Number of Track Rollers per Side | 8 |
| Number of Shoes per Side | 2 |
| Standard Shoe Size | 36 in |
Standard Blade
| Width | 150 in |
|---|---|
| Height | 43 in |
| Capacity | 4.50 yd³ |
| Blade Angle (both directions) | 23 ° |
