Liebherr

PR724 XL

Crawler Dozer

Operating Weight
38,129 lb
Max Speed - Forward
6.9 mph
Gross Power
160.0 hp
Net Power
158.0 hp
All crawler dozers

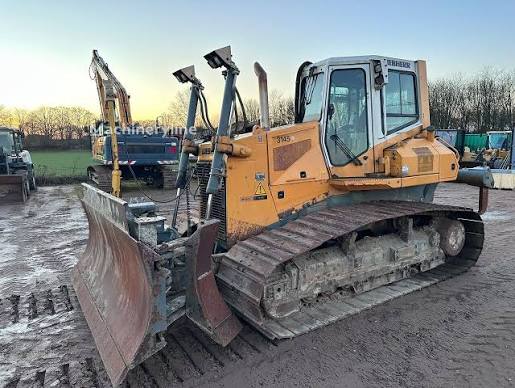

Liebherr PR724 XL Crawler Dozer
1 / 5
Image 1 of 5
Image: promuts.kz

Specifications

37 data points

Operating Specifications

Operating Specifications specifications
Operating Weight38,129 lb
Fuel Capacity96.5 gal
Cooling System Fluid Capacity8.0 gal
Final Drives Fluid Capacity4.9 gal
Engine Oil Capacity5.1 gal
Hydraulic Fluid Capacity42.8 gal
Operating Voltage24 V
Alternator Supplied Amperage55 A

Engine

Engine specifications
Engine ModelD 924 TI-E
Displacement403 in³
Power Measured @1,800 rpm
Gross Power160.0 hp
Net Power158.0 hp
Number of Cylinders4
AspirationDirect injection turbo-charged

Hydraulic System

Hydraulic System specifications
Pump Flow Capacity46.0 gal/min
Relief Valve Pressure2,900 psi
Pump Typeswash plate piston pump

Dimensions

Dimensions specifications
Ground Clearance19 in
Height - Top of Cab126 in
Length of Track on Ground127 in
Width Over Tracks104 in
Length w/o Blade165 in

Transmission

Transmission specifications
Max Speed - Forward6.9 mph
Max Speed - Reverse4.9 mph
Transmission TypeInfinitley variable hydrostatic travel drive independent drive for each track frame
Number of Forward Gears3
Number of Reverse Gears2

Undercarriage

Undercarriage specifications
Ground Pressure6 psi
Track Gauge72 in
Number of Track Rollers per Side8
Number of Shoes per Side2
Standard Shoe Size24 in

Standard Blade

Standard Blade specifications
Width127 in
Height47 in
Capacity4.20 yd³
Blade Angle (both directions)23 °
