Liebherr

R904C

Excavator

Max Digging Depth
214 in
Max Digging Depth
233 in
All excavators

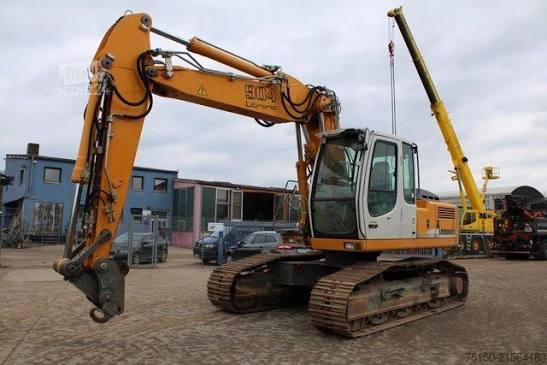

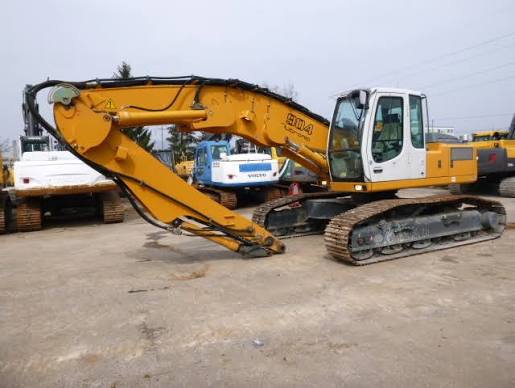

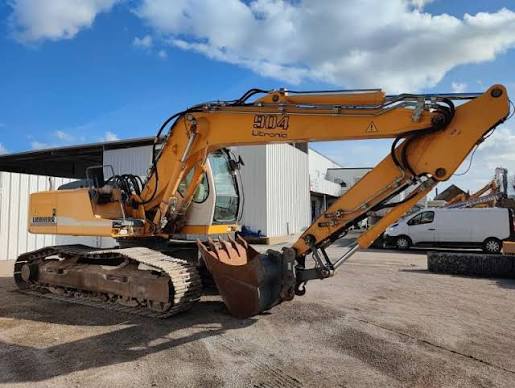

Liebherr R904C Excavator
1 / 5
Image 1 of 5
Image: truck1.eu

Specifications

58 data points

Operating Specifications

Operating Specifications specifications
Fuel Capacity89.9 gal
Hydraulic Pump Flow Capacity87.2 gal/min
Hydraulic System Fluid Capacity87.2 gal
Operating Voltage24 V
Alternator Supplied Amperage55 A

Engine

Engine specifications
Engine ModelD 924 Tl-E
Displacement403 in³
Power Measured @2,000 rpm
Aspirationdirect injection turbo-charged and after-cooled reduced emissions

Dimensions

Dimensions specifications
Ground Clearance19 in
Length of Track on Ground133 in
Tail Swing Radius98 in
Width to Outside of Tracks109 in
Digging Depth300 in
Digging Reach300 in

Undercarriage

Undercarriage specifications
Number of Track Rollers per Side2
Max Travel Speed3.3 mph
Number of Carrier Rollers per Side7
Drawbar Pull52,605 lb

Boom/Stick Excavator Option 1

Boom/Stick Excavator Option 1 specifications
Max Digging Depth214 in
Max Reach Along Ground341 in
Max Loading Height243 in
Max Cutting Height361 in
Shipping Length of Unit359 in
Shipping Height of Unit122 in

Bucket

Bucket specifications
Reference Bucket Capacity0.99 yd³
Maximum Bucket Capacity1.10 yd³
Minimum Bucket Capacity0.41 yd³

Swing Mechanism

Swing Mechanism specifications
Swing Speed9 rpm

Boom/Stick Excavator Option 2

Boom/Stick Excavator Option 2 specifications
Max Digging Depth233 in
Max Cutting Height380 in
Max Loading Height263 in
Max Reach Along Ground362 in
Shipping Length of Unit355 in
Shipping Height of Unit122 in

Boom/Stick Excavator Option 3

Boom/Stick Excavator Option 3 specifications
Max Digging Depth252 in
Max Cutting Height395 in
Max Loading Height275 in
Max Reach Along Ground380 in
Shipping Length of Unit355 in
Shipping Height of Unit122 in

Boom/Stick Excavator Option 4

Boom/Stick Excavator Option 4 specifications
Max Digging Depth272 in
Max Cutting Height408 in
Max Reach Along Ground401 in
Max Loading Height288 in
Shipping Length of Unit355 in

Boom/Stick Excavator Option 5

Boom/Stick Excavator Option 5 specifications
Max Digging Depth312 in
Max Reach Along Ground439 in
Max Cutting Height433 in
Max Loading Height313 in
Shipping Height of Unit122 in
Shipping Length of Unit355 in

Boom/Stick Excavator Option 6

Boom/Stick Excavator Option 6 specifications
Max Digging Depth214 in
Max Reach Along Ground329 in
Max Cutting Height356 in
Max Loading Height239 in
Shipping Length of Unit349 in
Shipping Height of Unit122 in
