Liebherr

R914B

Excavator

Max Digging Depth
223 in
Max Digging Depth
247 in
All excavators

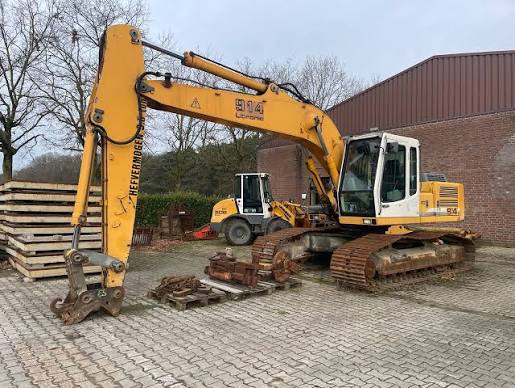

Liebherr R914B Excavator
1 / 5
Image 1 of 5
Image: adamexmaszyny.pl

Specifications

57 data points

Operating Specifications

Operating Specifications specifications
Fuel Capacity95.2 gal
Hydraulic Pump Flow Capacity52.9 gal/min
Hydraulic System Fluid Capacity116.3 gal
Operating Voltage24 V
Alternator Supplied Amperage55 A

Engine

Engine specifications
Engine ModelD 924 Tl-E
Displacement403 in³
Power Measured @2,000 rpm
Aspirationdirect injection turbo-charged and after-cooled reduced emission

Dimensions

Dimensions specifications
Ground Clearance19 in
Length of Track on Ground135 in
Tail Swing Radius113 in
Width to Outside of Tracks119 in
Digging Depth276 in
Digging Reach276 in

Undercarriage

Undercarriage specifications
Max Travel Speed3.3 mph
Shoe Size24 in
Drawbar Pull58,450 lb

Boom/Stick Excavator Option 1

Boom/Stick Excavator Option 1 specifications
Max Digging Depth223 in
Max Reach Along Ground349 in
Max Loading Height239 in
Max Cutting Height359 in
Shipping Length of Unit374 in
Shipping Height of Unit122 in

Bucket

Bucket specifications
Reference Bucket Capacity1.40 yd³
Maximum Bucket Capacity1.90 yd³
Minimum Bucket Capacity0.41 yd³

Swing Mechanism

Swing Mechanism specifications
Swing Speed9 rpm

Boom/Stick Excavator Option 2

Boom/Stick Excavator Option 2 specifications
Max Digging Depth247 in
Max Cutting Height371 in
Max Loading Height251 in
Max Reach Along Ground371 in
Shipping Length of Unit371 in
Shipping Height of Unit122 in

Boom/Stick Excavator Option 3

Boom/Stick Excavator Option 3 specifications
Max Digging Depth270 in
Max Cutting Height383 in
Max Loading Height260 in
Max Reach Along Ground393 in
Shipping Length of Unit371 in
Shipping Height of Unit122 in

Boom/Stick Excavator Option 4

Boom/Stick Excavator Option 4 specifications
Max Digging Depth298 in
Max Cutting Height395 in
Max Reach Along Ground420 in
Max Loading Height275 in
Shipping Length of Unit373 in

Boom/Stick Excavator Option 5

Boom/Stick Excavator Option 5 specifications
Max Digging Depth233 in
Max Reach Along Ground371 in
Max Cutting Height422 in
Max Loading Height296 in
Shipping Height of Unit122 in
Shipping Length of Unit395 in

Boom/Stick Excavator Option 6

Boom/Stick Excavator Option 6 specifications
Max Digging Depth257 in
Max Reach Along Ground395 in
Max Cutting Height438 in
Max Loading Height312 in
Shipping Length of Unit395 in
Shipping Height of Unit122 in
