Liebherr
Liugong
936E
Excavator
Specifications pending
1 / 5

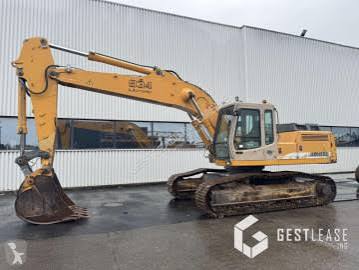

Image 1 of 5
Specifications
30 data points
Operating Specifications
| Fuel Capacity | 103.1 gal |
|---|---|
| Hydraulic Pump Flow Capacity | 121.6 gal/min |
| Hydraulic System Fluid Capacity | 74.0 gal |
| Hydraulic System Relief Valve Pressure | 5,076 psi |
| Operating Voltage | 24 V |
| Alternator Supplied Amperage | 55 A |
Engine
| Engine Model | D 924 TI-E |
|---|---|
| Power Measured @ | 2,000 rpm |
| Aspiration | In-line engine water-cooled |
Dimensions
| Ground Clearance | 22 in |
|---|---|
| Height - Top of Cab | 135 in |
| Length of Track on Ground | 158 in |
| Tail Swing Radius | 121 in |
| Width to Outside of Tracks | 126 in |
| Removal Counterweight Clearance | 50 in |
| Digging Depth | 288 in |
| Digging Reach | 288 in |
Undercarriage
| Ground Pressure | 9 psi |
|---|---|
| Max Travel Speed | 3.2 mph |
| Shoe Size | 20 in |
| Drawbar Pull | 75,536 lb |
Boom/Stick Excavator Option 1
| Max Digging Depth | 138 in |
|---|---|
| Max Reach Along Ground | 366 in |
| Max Loading Height | 306 in |
| Max Cutting Height | 414 in |
| Shipping Length of Unit | 482 in |
| Shipping Height of Unit | 158 in |
Bucket
| Reference Bucket Capacity | 0.90 yd³ |
|---|---|
| Maximum Bucket Capacity | 0.90 yd³ |
| Minimum Bucket Capacity | 0.71 yd³ |
