Liebherr

R936

Excavator

All excavators

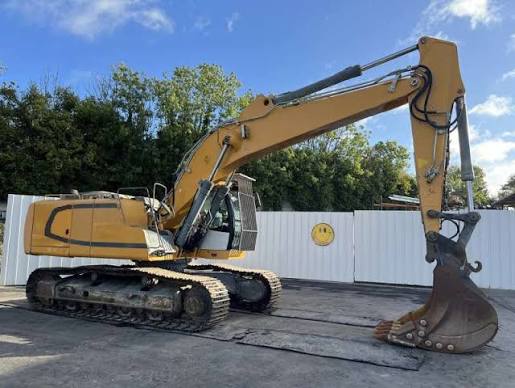

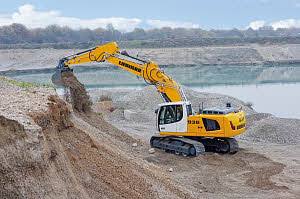

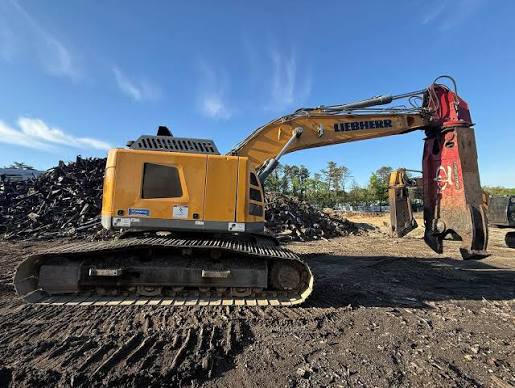

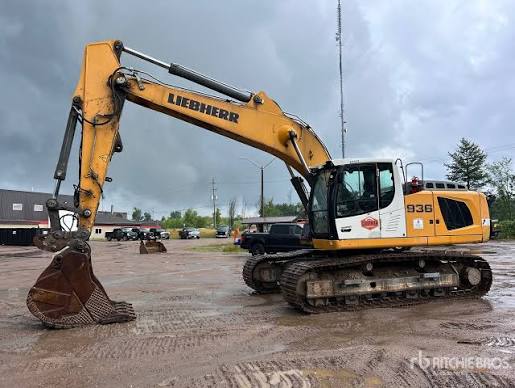

Liebherr R936 Excavator
1 / 5
Image 1 of 5
Image: ironplanet.com

Specifications

26 data points

Engine

Engine specifications
Power Measured @1,800 rpm
AspirationTurbo-charged and after-coolerreduced emissions
Torque Measured @1,100 rpm
Emission Tier LevelTier 4 Final
Air cleanerDry-type
Cooling systemwater-cooled
Exhaust Gas Recirculation (EGR)DOC Deutz

Undercarriage

Undercarriage specifications
Number of Carrier Rollers per Side43,710
Drawbar Pull73,063 lb
Tail Swing Radius1 in

Boom/Stick Excavator Option 1

Boom/Stick Excavator Option 1 specifications
Max.Dumping Height267 in
Bucket Digging Force - SAE36,194 lb
Breakout force - SAE40,690 lb

Boom/Stick Excavator Option 2

Boom/Stick Excavator Option 2 specifications
Bucket Digging Force - SAE30,799 lb
Breakout force-SAE40,690 lb

Boom/Stick Excavator Option 3

Boom/Stick Excavator Option 3 specifications
Max Digging Depth304 in
Max Reach Along Ground448 in
Bucket Digging Force - SAE27,876 lb
Breakout force-SAE40,690 lb

Boom/Stick Excavator Option 4

Boom/Stick Excavator Option 4 specifications
Max Digging Depth311 in
Max Reach Along Ground452 in
Max.Dumping Height294 in

Electrical System

Electrical System specifications
Batteries2 x 180 Ah / 12 V volts
Alternator—
Voltage24 V
Engine idlingSensor controlled
