Link Belt
130 LX
- Operating Weight
- 27,100 lb
- Max Digging Depth
- 219 in
- Max Digging Depth
- 241 in
- Net Power
- 89.0 hp
1 / 5

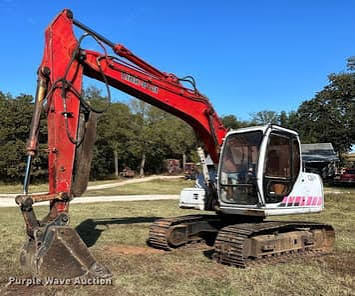

Image 1 of 5
Specifications
48 data points
Operating Specifications
| Operating Weight | 27,100 lb |
|---|---|
| Fuel Capacity | 66.1 gal |
| Hydraulic Pump Flow Capacity | 64.8 gal/min |
| Hydraulic System Fluid Capacity | 32.5 gal |
| Hydraulic System Relief Valve Pressure | 4,970 psi |
| Engine Oil Capacity | 4.0 gal |
| Cooling System Fluid Capacity | 4.7 gal |
| Operating Voltage | 24 V |
| Swing Drive Fluid Capacity | 0.6 gal |
| Alternator Supplied Amperage | 50 A |
Engine
| Engine Model | BB-4BG1T |
|---|---|
| Displacement | 264 in³ |
| Power Measured @ | 2,100 rpm |
| Net Power | 89.0 hp |
| Aspiration | Turbocharged |
| Torque Measured @ | 1,600 rpm |
| Max Torque | 239 lb-ft |
Dimensions
| Ground Clearance | 19 in |
|---|---|
| Height - Top of Cab | 108 in |
| Length of Track on Ground | 110 in |
| Tail Swing Radius | 80 in |
| Width to Outside of Tracks | 102 in |
| Removal Counterweight Clearance | 36 in |
Undercarriage
| Ground Pressure | 5 psi |
|---|---|
| Track Gauge | 79 in |
| Number of Track Rollers per Side | 7 |
| Max Travel Speed | 3.4 mph |
| Shoe Size | 24 in |
| Number of Shoes per Side | 43 |
| Number of Carrier Rollers per Side | 1 |
Boom/Stick Excavator Option 1
| Max Digging Depth | 219 in |
|---|---|
| Max Reach Along Ground | 320 in |
| Max Loading Height | 268 in |
| Max Vertical Wall Digging Depth | 196 in |
| Max Cutting Height | 361 in |
| Shipping Length of Unit | 295 in |
| Shipping Height of Unit | 108 in |
Bucket
| Reference Bucket Capacity | 0.71 yd³ |
|---|---|
| Maximum Bucket Capacity | 0.99 yd³ |
| Minimum Bucket Capacity | 0.50 yd³ |
Swing Mechanism
| Swing Speed | 13 rpm |
|---|
Boom/Stick Excavator Option 2
| Max Digging Depth | 241 in |
|---|---|
| Max Vertical Wall Digging Depth | 211 in |
| Max Cutting Height | 373 in |
| Max Loading Height | 278 in |
| Max Reach Along Ground | 340 in |
| Shipping Length of Unit | 298 in |
| Shipping Height of Unit | 110 in |
