Link Belt
Liugong
936E
Excavator
Specifications pending
1 / 5

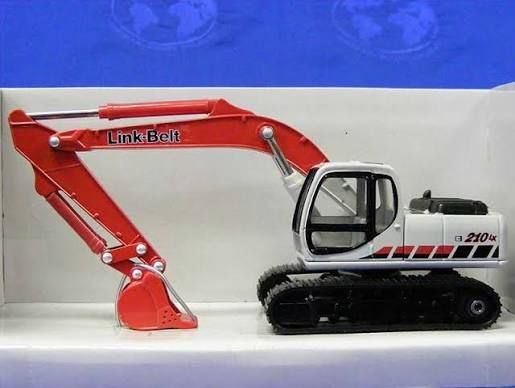

Image 1 of 5
Specifications
55 data points
Operating Specifications
| Fuel Capacity | 89.9 gal |
|---|---|
| Hydraulic Pump Flow Capacity | 106.2 gal/min |
| Hydraulic System Fluid Capacity | 54.5 gal |
| Hydraulic System Relief Valve Pressure | 4,970 psi |
| Engine Oil Capacity | 6.4 gal |
| Cooling System Fluid Capacity | 7.2 gal |
| Operating Voltage | 24 V |
| Swing Drive Fluid Capacity | 1.2 gal |
| Alternator Supplied Amperage | 40 A |
Engine
| Engine Model | BB-6BG1T |
|---|---|
| Displacement | 396 in³ |
| Power Measured @ | 1,950 rpm |
| Net Power | 138.0 hp |
| Number of Cylinders | 6 |
| Aspiration | Turbocharged |
| Torque Measured @ | 1,600 rpm |
| Max Torque | 392 lb-ft |
| Net Torque | 392 lb-ft |
Hydraulic System
| Pump Type | 2x Piston Pumps |
|---|---|
| Pump Flow Capacity | 106.2 gal/min |
| Relief Valve Pressure | 4,970 psi |
Dimensions
| Height - Top of Cab | 114 in |
|---|---|
| Overall Width | 144 in |
| Tail Swing Radius | 108 in |
| Width to Outside of Tracks | 126 in |
| Removal Counterweight Clearance | 42 in |
Undercarriage
| Number of Track Rollers per Side | 8 |
|---|---|
| Max Travel Speed | 3.4 mph |
| Number of Shoes per Side | 49 |
| Number of Carrier Rollers per Side | 2 |
| Max Speed | 2.1 mph |
Boom/Stick Excavator Option 1
| Max Digging Depth | 265 in |
|---|---|
| Max Reach Along Ground | 386 in |
| Max Loading Height | 270 in |
| Max Vertical Wall Digging Depth | 240 in |
| Max Cutting Height | 380 in |
| Shipping Length of Unit | 371 in |
| Shipping Height of Unit | 115 in |
Bucket
| Reference Bucket Capacity | 1.10 yd³ |
|---|---|
| Maximum Bucket Capacity | 1.60 yd³ |
| Minimum Bucket Capacity | 0.71 yd³ |
Swing Mechanism
| Swing Torque | 55,169 lb-ft |
|---|
Boom/Stick Excavator Option 2
| Max Digging Depth | 241 in |
|---|---|
| Max Vertical Wall Digging Depth | 216 in |
| Max Cutting Height | 370 in |
| Max Loading Height | 259 in |
| Max Reach Along Ground | 364 in |
| Shipping Length of Unit | 373 in |
| Shipping Height of Unit | 121 in |
Boom/Stick Log Loader Option 1
| Max Height | 480 in |
|---|---|
| Max Reach at Ground Level | 408 in |
| Shipping Length | 516 in |
| Boom/Stick Option (LGL) 1 | 36 (10970mm) |
| Max Depth Below Ground | 114 in |
| Shipping Height | 130 in |
