Link Belt
Liugong
936E
Excavator
Specifications pending
1 / 5

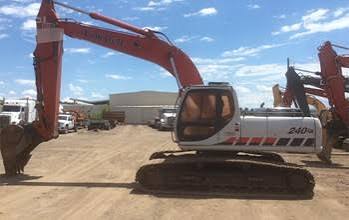

Image 1 of 5
Specifications
60 data points
Operating Specifications
| Fuel Capacity | 89.9 gal |
|---|---|
| Hydraulic Pump Flow Capacity | 112.0 gal/min |
| Hydraulic System Fluid Capacity | 59.5 gal |
| Hydraulic System Relief Valve Pressure | 4,970 psi |
| Engine Oil Capacity | 6.4 gal |
| Cooling System Fluid Capacity | 7.2 gal |
| Operating Voltage | 24 V |
| Swing Drive Fluid Capacity | 1.6 gal |
Engine
| Engine Model | BB-6BG1T |
|---|---|
| Displacement | 396 in³ |
| Power Measured @ | 2,150 rpm |
| Net Power | 162.0 hp |
| Number of Cylinders | 6 |
| Aspiration | Turbocharged |
| Torque Measured @ | 1,800 rpm |
| Max Torque | 415 lb-ft |
| Net Torque | 415 lb-ft |
Hydraulic System
| Pump Type | 2x Piston Pumps |
|---|---|
| Pump Flow Capacity | 112.0 gal/min |
| Relief Valve Pressure | 4,970 psi |
Dimensions
| Height - Top of Cab | 117 in |
|---|---|
| Overall Width | 144 in |
| Width to Outside of Tracks | 134 in |
| Removal Counterweight Clearance | 44 in |
Undercarriage
| Number of Track Rollers per Side | 9 |
|---|---|
| Max Travel Speed | 3.4 mph |
| Number of Shoes per Side | 51 |
| Number of Carrier Rollers per Side | 2 |
| Max Speed | 3.0 mph |
Boom/Stick Excavator Option 1
| Max Digging Depth | 275 in |
|---|---|
| Max Reach Along Ground | 404 in |
| Max Loading Height | 267 in |
| Max Vertical Wall Digging Depth | 245 in |
| Max Cutting Height | 386 in |
| Shipping Length of Unit | 390 in |
| Shipping Height of Unit | 122 in |
Bucket
| Reference Bucket Capacity | 1.29 yd³ |
|---|---|
| Maximum Bucket Capacity | 1.90 yd³ |
| Minimum Bucket Capacity | 0.80 yd³ |
Swing Mechanism
| Swing Torque | 73,019 lb-ft |
|---|
Boom/Stick Excavator Option 2
| Max Digging Depth | 292 in |
|---|---|
| Max Vertical Wall Digging Depth | 263 in |
| Max Cutting Height | 397 in |
| Max Loading Height | 276 in |
| Max Reach Along Ground | 421 in |
| Shipping Length of Unit | 391 in |
| Shipping Height of Unit | 131 in |
Boom/Stick Excavator Option 3
| Max Digging Depth | 251 in |
|---|---|
| Max Cutting Height | 379 in |
| Max Loading Height | 258 in |
| Max Vertical Wall Digging Depth | 223 in |
| Max Reach Along Ground | 383 in |
| Shipping Length of Unit | 393 in |
| Shipping Height of Unit | 131 in |
Boom/Stick Log Loader Option 2
| Boom/Stick Option (LGL) 2 | 38'0 (11580mm) Loading Arm |
|---|---|
| Max Depth Below Ground | 150 in |
| Max Height | 528 in |
| Max Reach at Ground Level | 450 in |
| Shipping Height | 132 in |
| Shipping Length | 557 in |
