Link Belt

TCC-2500

Crawler Crane

Power Measured @
1,800 rpm
All crawler cranes

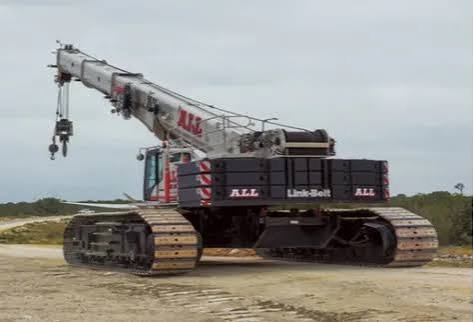

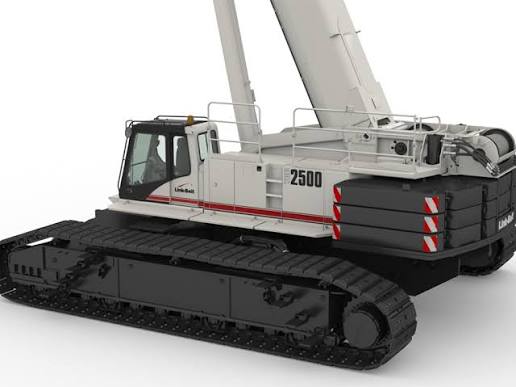

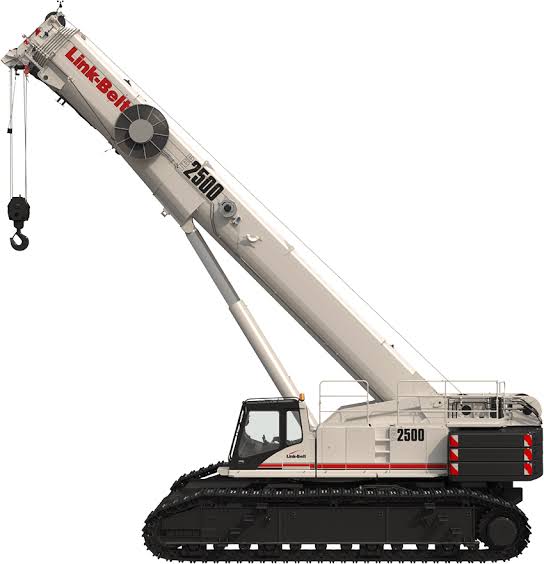

Link Belt TCC-2500 Crawler Crane
1 / 5
Image 1 of 5
Image: heavyequipmentguide.ca

Specifications

35 data points

Operating Specifications

Operating Specifications specifications
Operating Weight22,000 lb
Fuel Capacity110.0 gal
Operating Voltage12 V
Hydraulic System Fluid Capacity189.0 gal
Alternator Supplied Amperage160 A

Engine

Engine specifications
Engine ModelCummins QSL
Power Measured @1,800 rpm
Gross Power320.0 hp
Number of Cylinders6
AspirationTier 4f
Torque Measured @1,500 rpm
Max Torque1,050 lb-ft
Bore5 in
Stroke6 in
Crankcase capacity6.0 gal
Piston displacement543 in³

Dimensions

Dimensions specifications
Wheelbase296 in
Tail Swing Radius178 in
Transport Width285 in
Transport Height146 in
Transport Length660 in
Gradeability40.0 %

Transmission

Transmission specifications
Max Speed1.6 mph
Transmission Type2-speed travel

Undercarriage

Undercarriage specifications
Width of Shoes39 in
Number of Shoes per Side70
Track Gauge246 in
Length of Track on Ground348 in
Number of bottom rollers per side12
Number of top rollers per side3

Boom

Boom specifications
Min Height @ Max Raise Angle1,089 in
Max Height @ Max Raise Angle - no jib2,676 in
Max Elevating Angle83 °
Min Working Radius96 in
Number of Sections7
