Link Belt

TCC-1100

Crawler Crane

Power Measured @
1,800 rpm
All crawler cranes

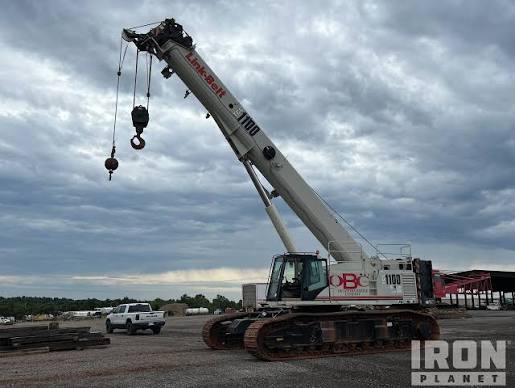

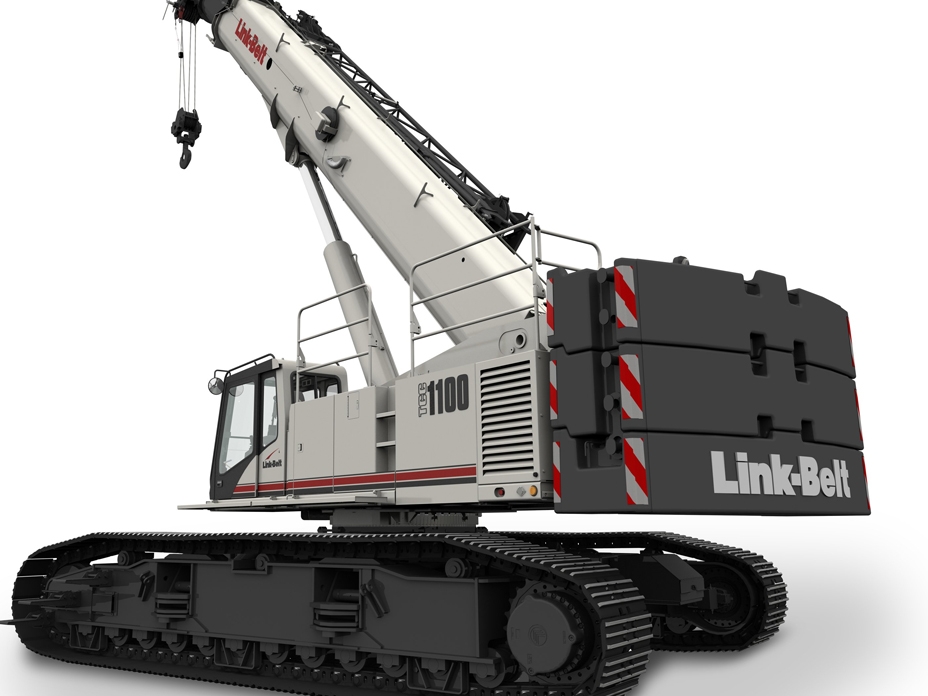

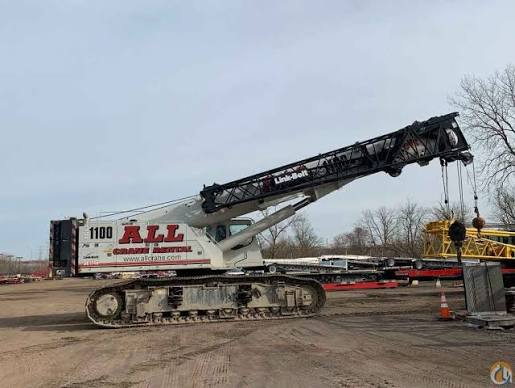

Link Belt TCC-1100 Crawler Crane
1 / 5
Image 1 of 5
Image: bigge.com

Specifications

35 data points

Operating Specifications

Operating Specifications specifications
Operating Weight19,000 lb
Fuel Capacity110.0 gal
Operating Voltage12 V
Hydraulic System Fluid Capacity250.0 gal
Alternator Supplied Amperage160 A

Engine

Engine specifications
Engine ModelCummins QSL
Power Measured @1,800 rpm
Gross Power320.0 hp
Number of Cylinders6
AspirationTier 4f
Torque Measured @1,500 rpm
Max Torque1,050 lb-ft
Bore5 in
Stroke6 in
Crankcase capacity6.0 gal
Piston displacement543 in³

Dimensions

Dimensions specifications
Wheelbase235 in
Tail Swing Radius293 in
Transport Width219 in
Transport Height144 in
Transport Length605 in
Gradeability40.0 %

Transmission

Transmission specifications
Max Speed2.0 mph
Transmission Type2-speed travel

Undercarriage

Undercarriage specifications
Width of Shoes36 in
Number of Shoes per Side65
Track Gauge183 in
Length of Track on Ground282 in
Number of bottom rollers per side11
Number of top rollers per side3

Boom

Boom specifications
Min Height @ Max Raise Angle1,267 in
Max Height @ Max Raise Angle - no jib1,915 in
Max Elevating Angle80 °
Min Working Radius120 in
Number of Sections5
