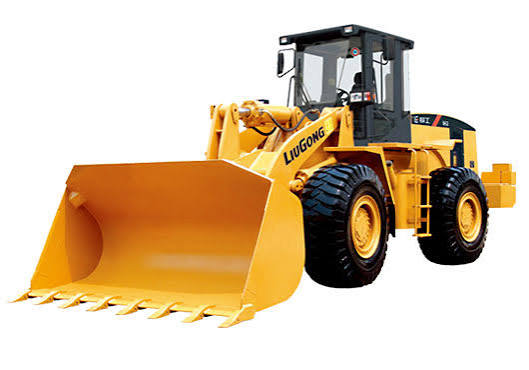

Liugong
Tata Hitachi
TWL3036
Wheel Loader
41 specifications
1 / 5
Image 1 of 5
Specifications
18 data points
Operating Specifications
| Operating Weight | 42,549 lb |
|---|---|
| Tire Size | 23.5-25 |
Engine
| Engine Model | 6CTA8.3-C240 |
|---|---|
| Power Measured @ | 2,200 rpm |
| Net Power | 240.1 hp |
Hydraulic System
| Pump Type | Gear |
|---|
Dimensions
| Height - Top of Cab | 137 in |
|---|---|
| Width Over Tires | 119 in |
| Reach at Max Lift and Dump | 48 in |
| Length with Bucket on Ground | 335 in |
Transmission
| Max Speed - Forward | 22.4 mph |
|---|---|
| Max Speed - Reverse | 14.3 mph |
| Transmission Type | Powershift |
| Number of Forward Gears | 4 |
| Number of Reverse Gears | 3 |
Bucket
| Bucket Capacity - heaped | 4.60 yd³ |
|---|---|
| Dump Clearance at Max Raise | 125 in |
| Breakout Force | 44,512 lb |
