Madill
John Deere
2054
Processor
40 specifications
1 / 5

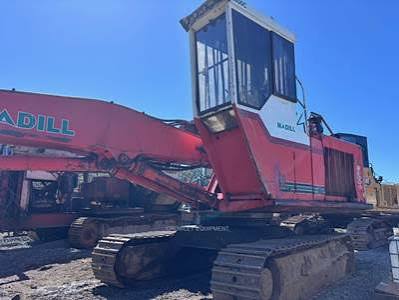

Image 1 of 5
Specifications
18 data points
Operating Specifications
| Operating Weight | 74,000 lb |
|---|---|
| Max Speed | 3.0 mph |
| Fuel Capacity | 265.0 gal |
| Operating Voltage | 24 V |
| Alternator Supplied Amperage | 70 A |
| Hydraulic System Fluid Capacity | 50.0 gal |
Engine
| Engine Model | QSB.5.9 |
|---|---|
| Power Measured @ | 2,200 rpm |
| Gross Power | 205.0 hp |
Dimensions
| Height - Top of Cab | 150 in |
|---|---|
| Overall Width | 137 in |
Undercarriage
| Ground Pressure | 8 psi |
|---|---|
| Number of Track Rollers per Side | 9 |
| Shoe Size | 260,000 in |
| Ground Clearance | 29 in |
| Track Length | 192 in |
Boom
| Lift Capacity at Max Reach | 10,200 lb |
|---|---|
| Max Reach w/ Head | 360 in |
