Madill

800

Processor

Operating Weight
66,500 lb
Lift Capacity at Max Reach
11,000 lb
Gross Power
185.0 hp
All processors/harvesters

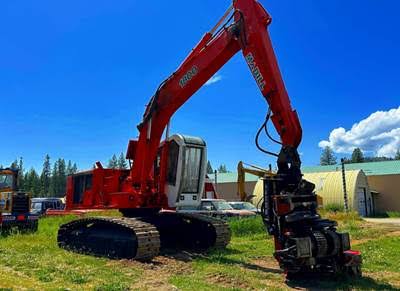

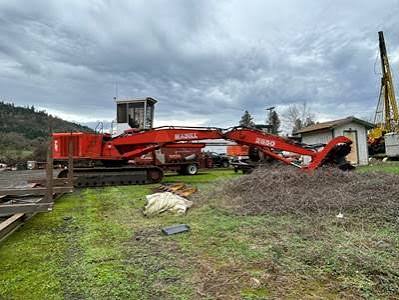

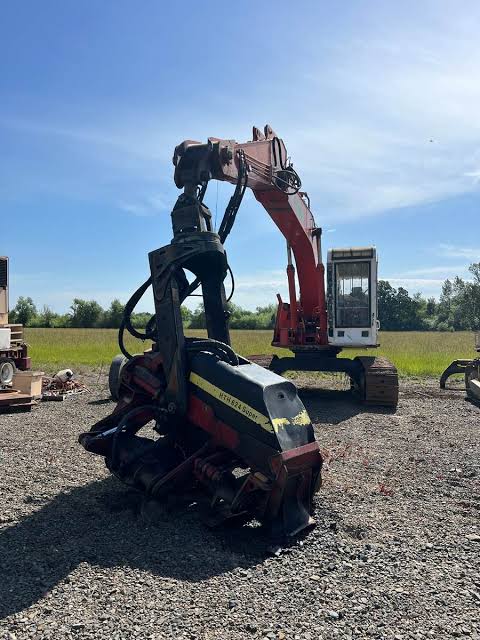

Madill 800 Processor
1 / 5
Image 1 of 5
Image: mylittlesalesman.com

Specifications

18 data points

Operating Specifications

Operating Specifications specifications
Operating Weight66,500 lb
Max Speed3.4 mph
Fuel Capacity230.0 gal
Operating Voltage24 V
Alternator Supplied Amperage70 A
Hydraulic System Fluid Capacity41.0 gal

Engine

Engine specifications
Engine ModelQSB.5.9
Power Measured @2,200 rpm
Gross Power185.0 hp

Dimensions

Dimensions specifications
Height - Top of Cab146 in
Overall Width131 in

Undercarriage

Undercarriage specifications
Ground Pressure8 psi
Number of Track Rollers per Side9
Shoe Size26 in
Ground Clearance29 in
Track Length172 in

Boom

Boom specifications
Lift Capacity at Max Reach11,000 lb
Max Reach w/ Head342 in
