Manitou

120XEL

Aerial Lift

Max Platform Height
402 in
Overall Length
9 in
Overall Width
48 in
All aerial lifts

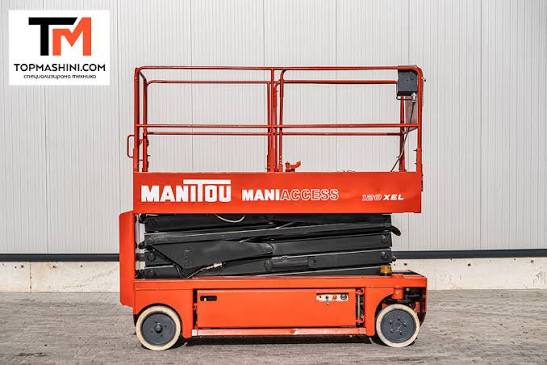

Manitou 120XEL Aerial Lift
1 / 5
Image 1 of 5
Image: lectura-specs.com

Specifications

21 data points

Engine

Engine specifications
System Voltage24 V
Battery Amp Hours310
Charger Amps30

Dimensions

Dimensions specifications
Ground Clearance5 in
Overall Length9 in
Overall Width48 in
Turning Radius109 in
Height w/ Rails101 in
Height w/o Rails72 in

Performance

Performance specifications
Operating Weight6,261 lb
Max Speed2.2 mph
Tire Size16.5x11.25
Tire Fill/TypeSolid Non-marking

Platform

Platform specifications
Max Platform Height402 in
Max Platform Weight Capacity706 lb
Platform Inner Length106 in
Platform Inner Width47 in
Max Working Height481 in
Lift Time40.0 s
Deck Extension47 in
Lower Time54.0 s
