Massey Ferguson

1745

Baler

Bale Width
47 in
Overall Width
94 in
Overall Height
102 in
All balers

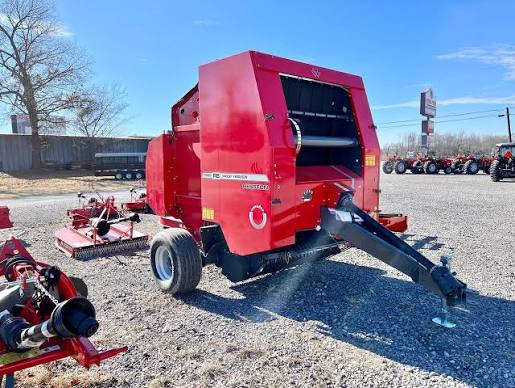

Massey Ferguson 1745 Baler
1 / 5
Image 1 of 5
Image: machinerypete.com

Specifications

23 data points

Engine

Engine specifications
PTO Speed540 rpm
Weight3,999 lb

Hydraulic System

Hydraulic System specifications
Hydraulic remote valvesOne double acting

Dimensions

Dimensions specifications
Overall Length148 in
Overall Width94 in
Overall Height102 in
Weight3,720 lb
Tractor PTO Power Required40.0 hp

Tires & Wheels

Tires & Wheels specifications
Standard31L x 13.5-15

Bale Size

Bale Size specifications
Bale Width47 in
Bale Diameter - max62 in
Bale Diameter - min30 in
Bale Weight - min1,250 lb

Baler Pickup

Baler Pickup specifications
Number of Bars4
Tine to Tine Width44 in
Number of Tines72
Inside Width47 in
Outer tine-to-tine width47 in
Windguard descriptionAdjustable rod

Wrapping System

Wrapping System specifications
Twine Ball Capacity4
Twine TypeElectric Actuated

Bale Chamber

Bale Chamber specifications
Number of Belts—
Belt Width7 in
