Massey Ferguson
Welger
AP 830
Baler
13 specifications
1 / 5

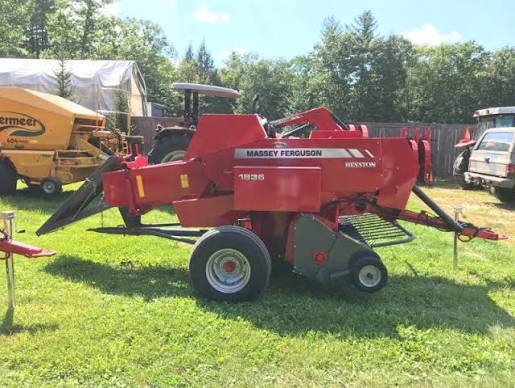

Image 1 of 5
Specifications
38 data points
Engine
| PTO Speed | 540 rpm |
|---|---|
| PTO Horsepower | 45.6 hp |
Dimensions
| Overall Length | 64 in |
|---|---|
| Overall Width | 94 in |
| Overall Height | 73 in |
| Weight | 500 lb |
| Length w/bale chute | 204 in |
| Height w/shielding | 65 in |
| Length w/o bale chute | 168 in |
| Length w/bale thrower | 240 in |
Tires & Wheels
| Standard | 9.5L x 14 6 Ply |
|---|
Bale Size
| Bale Length - max | 53 in |
|---|---|
| Bale Weight - max | 71 lb |
| Bale Length - min | 13 in |
| Bale cross section,Height X Width(in,mm) | 14 x 18 (356 x 457) |
| Baler weight | 2,698 lb |
Baler Pickup
| Number of Bars | 3 |
|---|---|
| Tine to Tine Width | 55 in |
| Number of Tines | 66 |
| Inside Width | 61 in |
| Pickup gauge wheel | 2 |
| Outer tine-to-tine width | 74 in |
| Pickup protection | Belt drive |
| Augers | 13 in |
Feeding Chamber
| Stuffer Type | Crank type w/4 tines |
|---|---|
| Protection | Shearbolt |
| Drive | No. 60 chain |
Plunger
| Stroke Length | 22 in |
|---|---|
| Plunger speed (strokes/min) | 92 |
Wrapping System
| Twine Ball Capacity | — |
|---|---|
| Twine Type | Knotters |
| Protection | Shearbolt |
Bale Chamber
| Apron belts | Flywheel |
|---|---|
| Apron belts - Number | 2 |
| Apron belts - Size | 12 in |
| Apron belts - Type | Wedge Grip pattern |
| Baler Thrower type | Belt |
| Belt drive | Hydraulic pump driven by baler |
