Massey Ferguson

2250PC

Baler

Bale Width
35 in
Overall Width
117,875 in
All balers

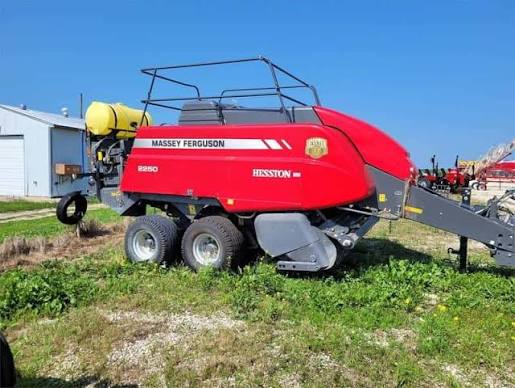

Massey Ferguson 2250PC Baler
1 / 5
Image 1 of 5
Image: reiserimpl.com

Specifications

36 data points

Engine

Engine specifications
PTO Speed1,000 rpm
Weight14,215 lb
Electrical System12 volt DC
Horsepower - Gross150.0 hp

Dimensions

Dimensions specifications
Overall Length305 in
Overall height - To top of folded hand rails113 in
Overall width w/single axle102 in
Overall width w/tandem axles108 in
Overall height - To top of raised hand rails129 in

Tires & Wheels

Tires & Wheels specifications
Tandem axle500-50 x 17 16 ply
Single axle600-50 x 22.5 12 ply

Bale Size

Bale Size specifications
Bale Width35 in
Bale Length - max108 in
Bale Height32 in
Baler weight w/single axle15,505 lb
Baler weight w/tandem axle, Packer version16,826 lb

Baler Pickup

Baler Pickup specifications
Overall Width117,875 in
Number of Tines64
Inside Width85 in
Tine spacing3 in

Feeding Chamber

Feeding Chamber specifications
Packer TypeRC 100 Roller Chains
Packer protectionSlip Clutch
Stuffer Fingers6
Stuffer protectionShear bolt on main drive sprocket

Plunger

Plunger specifications
Stroke Length29 in
Plunger speed (strokes/min)47

Wrapping System

Wrapping System specifications
Twine Ball Capacity30
Twine TypeHigh quality split film polypropylene or sisal twine
KnottersFour double knot
Cutter knives6
Knife activation, in-outHydraulics
Knife distance - min5 in
Knife removalSlide out knife bed top removal

Driveline

Driveline specifications
Driveline TypeType 2 or Type 3 PTO
GearboxEnclosed double reduction
ProtectionOverrunning slip clutch and shear bolt
