Massey Ferguson

5613

Tractor

Operating Weight
8,929 lb
Displacement
269 in³
Power Measured @
2,200 rpm
All tractors

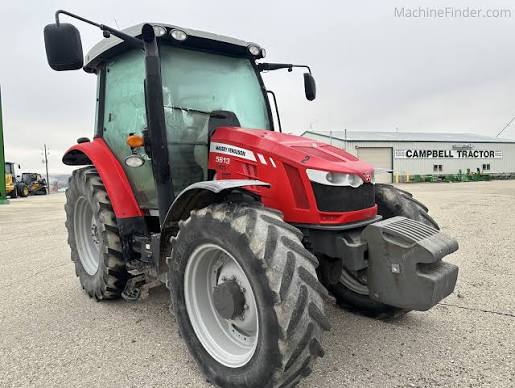

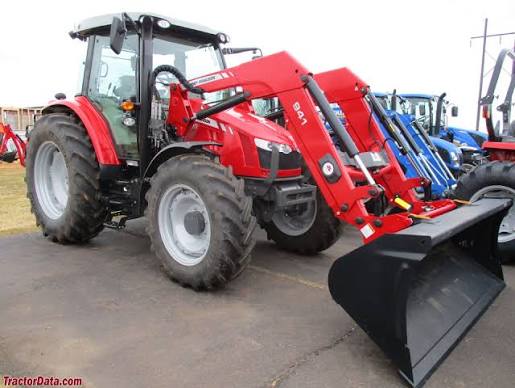

Massey Ferguson 5613 Tractor
1 / 5
Image 1 of 5
Image: machinerylink.com

Specifications

24 data points

Operating Specifications

Operating Specifications specifications
Operating Weight8,929 lb
3 Point Hitch Lift Capacity @ 24 inches11,449 lb

Engine

Engine specifications
Displacement269 in³
Power Measured @2,200 rpm
Number of Cylinders4
AspirationTurbocharged
Max Torque545 lb-ft
Engine MakeAGCO Power
Stroke5 in
Bore4 in
Alternator120 A

Hydraulic System

Hydraulic System specifications
Maximum operating pressure2,901 psi
Hydraulic remote valvesMechanical and electronic control

Dimensions

Dimensions specifications
Height - Top of Cab111 in
Wheelbase101 in
Width Outside Frame80 in
Height - Top of ROPS/FOPS111 in

Transmission

Transmission specifications
Max Speed31.1 mph
Number of Forward Gears16
Number of Reverse Gears16

Tires & Wheels

Tires & Wheels specifications
Rear Tires Size16.9R38

Production

Production specifications
Series5600 Series
Years Manufactured—

Power Take-Off (PTO)

Power Take-Off (PTO) specifications
Power Take-Off(PTO) TypeElectro-hydraulic engagement and speed selection
