Massey Ferguson

6280

Tractor

Operating Weight
10,615 lb
Displacement
366 in³
Power Measured @
2,200 rpm
Gross Power
128.8 hp
All tractors

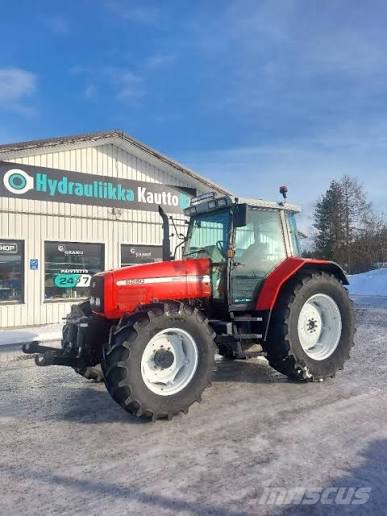

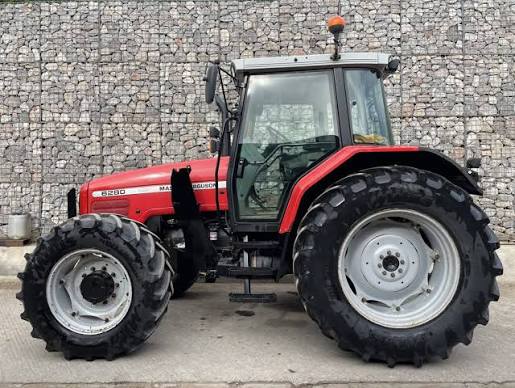

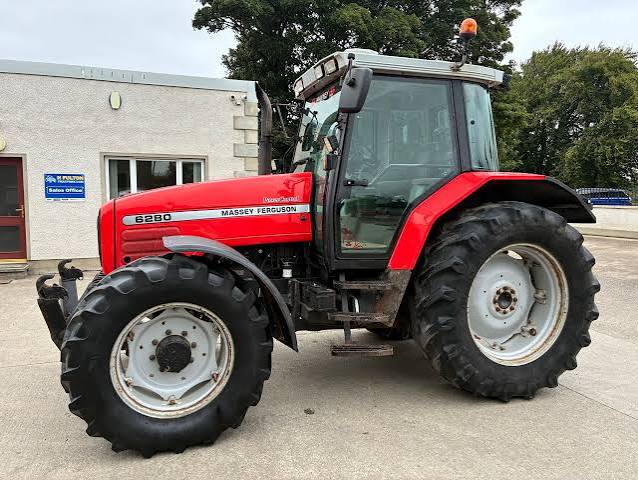

Massey Ferguson 6280 Tractor
1 / 5
Image 1 of 5
Image: hfultontractors.com

Specifications

26 data points

Operating Specifications

Operating Specifications specifications
Operating Weight10,615 lb
Fuel Capacity59.0 gal
3 Point Hitch Lift Capacity @ 24 inches9,200 lb
Tire Size Front - 2wd / 4wd16.9R-38
Hydraulic System Fluid Capacity16.4 gal

Engine

Engine specifications
Displacement366 in³
Power Measured @2,200 rpm
Gross Power128.8 hp
AspirationTurbocharged
Engine MakePerkins
PTO Power110.0 hp
Stroke5 in
Bore4 in

Hydraulic System

Hydraulic System specifications
Pump Flow Capacity14.8 gal/min
Number of Remote Control Valves2

Dimensions

Dimensions specifications
Wheelbase107 in
Overall Length185 in
Height - Top of ROPS/FOPS122 in

Transmission

Transmission specifications
Max Speed24.9 mph
Number of Forward Gears32
Transmission TypeManual / Partial Power-Shift
Number of Reverse Gears32

Tires & Wheels

Tires & Wheels specifications
Rear Tires Size10.00-16

Production

Production specifications
Series6200 Series
Years Manufactured1,999 – 2,003

Power Take-Off (PTO)

Power Take-Off (PTO) specifications
PTO speed1,000 rpm
