Massey Ferguson

860

Combine

Operating Weight w/o Attachment
23,645 lb
Fuel Capacity
89.9 gal
Displacement
537 in³
Power
182.4 hp
All combines/harvesters

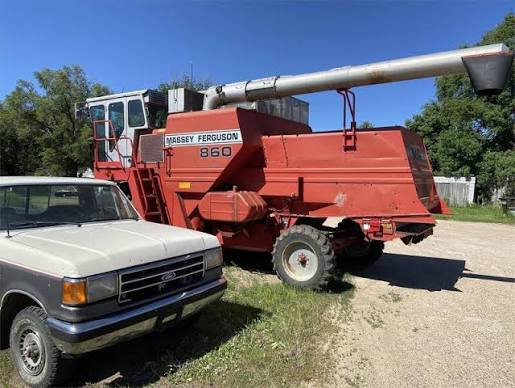

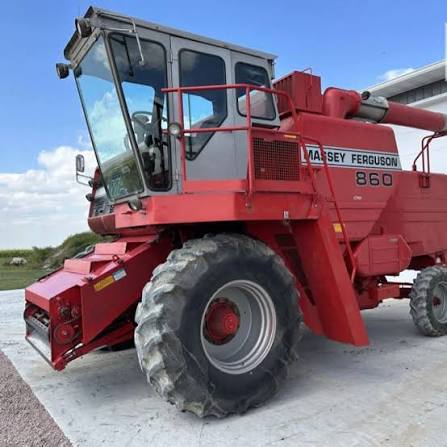

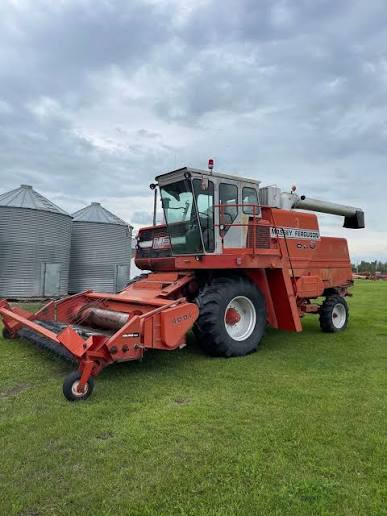

Massey Ferguson 860 Combine
1 / 5
Image 1 of 5
Image: tractorhouse.com

Specifications

30 data points

Operating Specifications

Operating Specifications specifications
Operating Weight w/o Attachment23,645 lb
Fuel Capacity89.9 gal

Engine

Engine specifications
Engine ModelAV6-540
Displacement537 in³
Power Measured @2,500 rpm
Number of Cylinders8
Engine MakePerkins
Power182.4 hp

Dimensions

Dimensions specifications
Wheelbase166 in
Transport Width177,166 in
Transport Height150 in
Transport Length378 in
Turning Radius264 in
Unloader clearance134 in

Tires & Wheels

Tires & Wheels specifications
Rear Tires Size14L x 16.1 F2 6-ply
Front Tires Size24.5 x 32 R1 l0-ply

Cleaning System

Cleaning System specifications
Cleaning Fan Speed - High1,100 rpm
Cleaning Fan Speed - Low440 rpm

Feeding

Feeding specifications
Conveyor Speed750 rpm

Grain Handling

Grain Handling specifications
Grain Tank Capacity1,861.8 gal
Unloading Discharge Height146 in

Threshing

Threshing specifications
Rotor Diameter22 in
Rotor Speed - High1,300 rpm
Rotor Speed - Low380 rpm
Concave Area1,304 in³
width59 in

HEADER

HEADER specifications
Width - Table158 in
Auger diameter20 in
HEADER TypeCenter feed with retractable ngers
Lowering timeVariable
