Massey Ferguson
MF 3425 CF
- Operating Weight
- 8,995 lb
- Displacement
- 269 in³
- Power Measured @
- 2,200 rpm
- Gross Power
- 68.0 hp
1 / 5

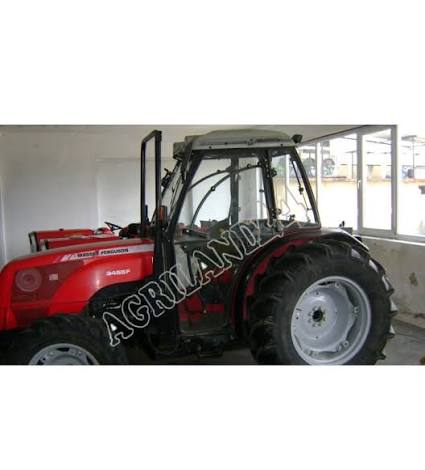

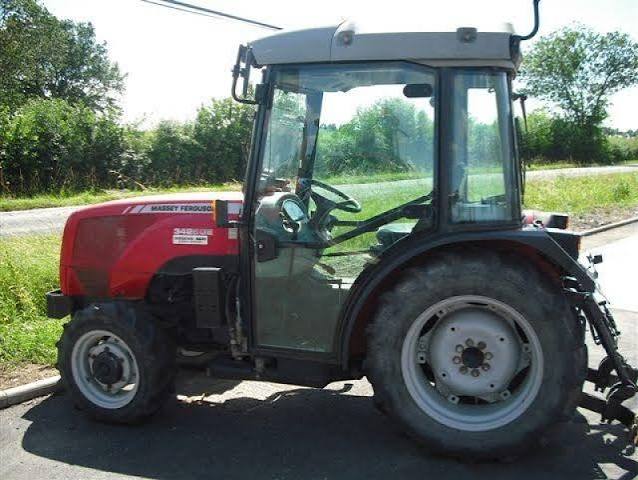

Image 1 of 5
Specifications
19 data points
Operating Specifications
| Operating Weight | 8,995 lb |
|---|---|
| Fuel Capacity | 25.1 gal |
| 3 Point Hitch Lift Capacity @ 24 inches | 5,842 lb |
Engine
| Engine Model | 1104C-44 |
|---|---|
| Displacement | 269 in³ |
| Power Measured @ | 2,200 rpm |
| Gross Power | 68.0 hp |
| Aspiration | natural |
Hydraulic System
| Pump Flow Capacity | 10.4 gal/min |
|---|---|
| Number of Remote Control Valves | 3 |
| Relief Valve Pressure | 2,611 psi |
Dimensions
| Height - Top of Cab | 91 in |
|---|---|
| Wheelbase | 66 in |
| Overall Length | 12 in |
| Width Outside Frame | 56 in |
| Track Width | 12 in |
Transmission
| Number of Forward Gears | 16 |
|---|---|
| Transmission Type | reverse shuttle and overdive |
| Number of Reverse Gears | 8 |
