Mec

3391RT

Aerial Lift

Max Platform Height
397 in
Overall Length
12 in
Overall Width
91 in
All aerial lifts

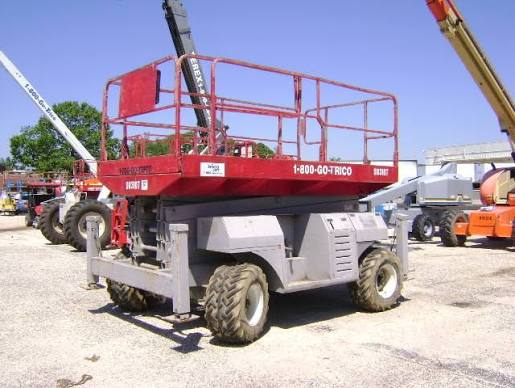

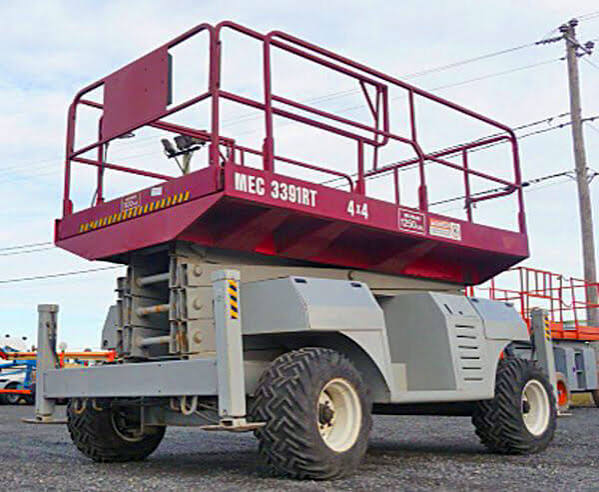

Mec 3391RT Aerial Lift
1 / 5
Image 1 of 5
Image: industrialmanlifts.com

Specifications

21 data points

Engine

Engine specifications
Engine ModelDF752 Dual Fuel

Dimensions

Dimensions specifications
Ground Clearance12 in
Wheelbase103 in
Overall Length12 in
Overall Width91 in
Turning Radius196 in
Height w/ Rails110 in
Height w/o Rails79 in

Performance

Performance specifications
Operating Weight8,699 lb
Max Speed3.8 mph
Tire Size12-16.5 NHS ""outrigger"""NULL
Hydraulic System Fluid Capacity23.0 gal
Fuel Capacity15.1 gal

Platform

Platform specifications
Max Platform Height397 in
Max Platform Weight Capacity1,499 lb
Platform Inner Length132 in
Max Working Height475 in
Lift Time33.0 s
Deck Extension48 in
Lower Time35.0 s
Height of Rails46 in
