Michigan

L160

Wheel Loader

Bucket Capacity - heaped
5.00 yd³
Gross Power
264.0 hp
Net Power
252.0 hp
All wheel loaders

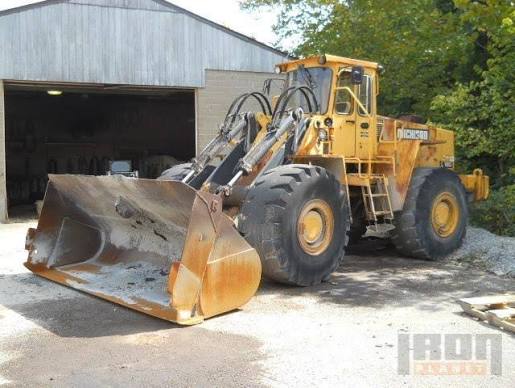

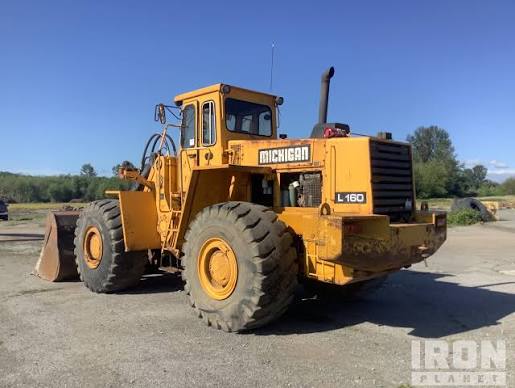

Michigan L160 Wheel Loader
1 / 5
Image 1 of 5
Image: volvoce.com

Specifications

49 data points

Operating Specifications

Operating Specifications specifications
Fuel Capacity89.9 gal
Tire Size26.5-25
Hydraulic System Fluid Capacity84.6 gal
Operating Voltage24 V
Turning Radius292 in
Rear Axle Oscillation30 °
Cooling System Fluid Capacity18.5 gal
Transmission Fluid Capacity12.5 gal
Static Tipping Load - Bucket37,390 lb
Front Diff Fluid Capacity11.9 gal
Rear Diff Fluid Capacity14.8 gal
Static Tipping Load - Forks22,487 lb
Static Tipping Load33,885 lb

Engine

Engine specifications
Displacement586 in³
Power Measured @2,200 rpm
Gross Power264.0 hp
Net Power252.0 hp
Number of Cylinders6
Aspirationturbocharged
Torque Measured @1,400 rpm

Hydraulic System

Hydraulic System specifications
Pump Flow Capacity66.1 gal/min
Raise Time7.0 s
Lower Time2.8 s
Dump Time1.9 s
Relief Valve Setting2,900 psi
Pump Typetriple vane type

Dimensions

Dimensions specifications
Wheelbase141 in
Width Over Tires119 in
Hinge Pin - Max Height175 in
Dump Clearance at Max Lift126 in
Reach at Max Height and Dump46 in
Length w/ Bucket on Ground322 in
Max Lift Height33 in
Fork Tine Length60 in
Length with out Forks on Ground323 in
Length With Blade on Ground328 in
Width Over Wheels130 in

Transmission

Transmission specifications
Max Speed - Forward24.8 mph
Max Speed - Reverse24.8 mph
Max Speed25.2 mph

Bucket

Bucket specifications
Bucket Capacity - heaped5.00 yd³
Bucket Capacity - struck4.60 yd³
Breakout Force40,182 lb

Blades

Blades specifications
Blade Width134 in
Blade Capacity5.30 yd³

Wheels

Wheels specifications
Front Wheels Drum Diameter55 in
Front Wheels Drum Width34 in
Rear Wheels Drum Diameter55 in
Rear Wheels Drum Width34 in
