MichiganZettelmeyer
ZL5001
Wheel Loader
35 specifications
Michigan
L190 Long Boom
- Operating Weight
- 63,412 lb
- Bucket Capacity - heaped
- 5.30 yd³
- Gross Power
- 322.0 hp
- Net Power
- 290.0 hp
1 / 5

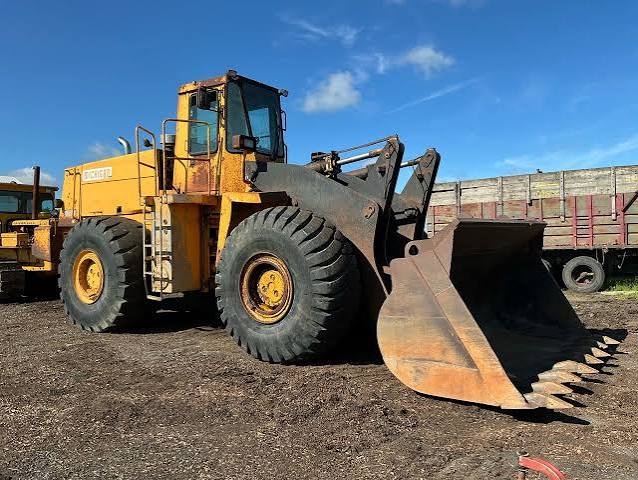

Image 1 of 5
Specifications
45 data points
Operating Specifications
| Operating Weight | 63,412 lb |
|---|---|
| Fuel Capacity | 108.1 gal |
| Tire Size | 29.5-25 (22PR) L-3 |
| Hydraulic System Fluid Capacity | 85.1 gal |
| Static Tipping Weight | 40,490 lb |
| Operating Voltage | 24 V |
| Turning Radius | 316 in |
| Engine Oil Fluid Capacity | 9.1 gal |
| Rear Axle Oscillation | 22 ° |
| Alternator Supplied Amperage | 100 A |
| Front Axle/Diff Fluid Capacity | 9.1 gal |
| Rear Axle/Diff Fluid Capacity | 9.1 gal |
| Cooling System Fluid Capacity | 20.0 gal |
| Transmission Fluid Capacity | 12.5 gal |
Engine
| Engine Model | NTA 855C335 |
|---|---|
| Displacement | 855 in³ |
| Power Measured @ | 1,900 rpm |
| Gross Power | 322.0 hp |
| Net Power | 290.0 hp |
| Number of Cylinders | 6 |
| Aspiration | turbocharged |
| Torque Measured @ | 1,400 rpm |
Hydraulic System
| Pump Flow Capacity | 35.5 gal/min |
|---|---|
| Raise Time | 7.0 s |
| Lower Time | 5.0 s |
| Dump Time | 3.0 s |
| Relief Valve Setting | 2,750 psi |
| Pump Type | gear type |
Dimensions
| Ground Clearance | 24 in |
|---|---|
| Height - Top of Cab | 149 in |
| Wheelbase | 138 in |
| Width Over Tires | 124 in |
| Reach at Max Lift and Dump | 55 in |
| Length with Bucket on Ground | 379 in |
| Hinge Pin - Max Height | 198 in |
Transmission
| Max Speed - Forward | 22.3 mph |
|---|---|
| Max Speed - Reverse | 22.3 mph |
| Transmission Type | Clark 4425-200 |
| Number of Forward Gears | 4 |
| Number of Reverse Gears | 4 |
Bucket
| Bucket Capacity - heaped | 5.30 yd³ |
|---|---|
| Bucket Capacity - struck | 4.39 yd³ |
| Dump Clearance at Max Raise | 149 in |
| Breakout Force | 50,492 lb |
| Bucket Width | 131 in |
