Mustang
Case
440
Skid Steer Loader
32 specifications
.jpg)
1 / 5

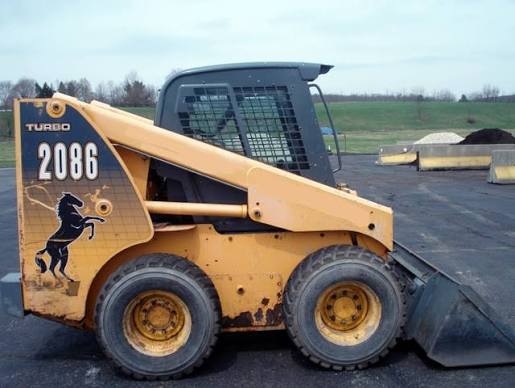

Image 1 of 5
Specifications
28 data points
Operating Specifications
| Operating Weight | 7,900 lb |
|---|---|
| Max Speed | 11.4 mph |
| Fuel Capacity | 24.0 gal |
| Hydraulic System Fluid Capacity | 16.0 gal |
| Operating Voltage | 12 V |
| Alternator Supplied Amperage | 95 A |
Engine
| Engine Model | 4TNV98T / Tier III (Turbocharged ) |
|---|---|
| Displacement | 202 in³ |
| Power Measured @ | 2,500 rpm |
| Gross Power | 84.0 hp |
| Number of Cylinders | 4 |
| Aspiration | Turbocharged |
Hydraulic System
| Pump Flow Capacity | 21.5 gal/min |
|---|---|
| Relief Valve Pressure | 3,000 psi |
Dimensions
| Ground Clearance | 8 in |
|---|---|
| Height - Top of Cab | 81 in |
| Wheelbase | 48 in |
| Width Over Tires | 65 in |
| Reach at Max Lift and Dump | 123 in |
| Length with Bucket | 135 in |
| Clearance at Max Lift and Dump | 29 in |
| Turning Radius from Center - machine rear | 65 in |
| Length w/o Bucket | 106 in |
Loader
| Bucket Capacity | 0.50 yd³ |
|---|---|
| Operating Load Rating | 2,900 lb |
| Tipping Angle | 5,200 ° |
| Operating Width | 69 in |
| Breakout Force | 6,296 psi |
