Mustang

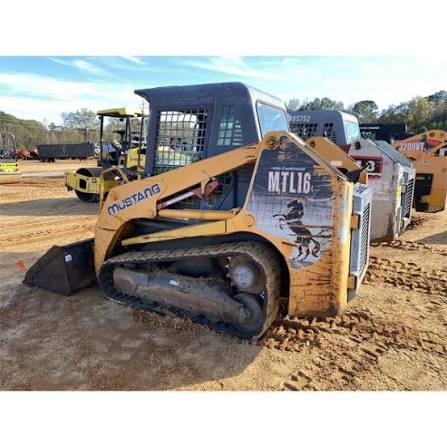

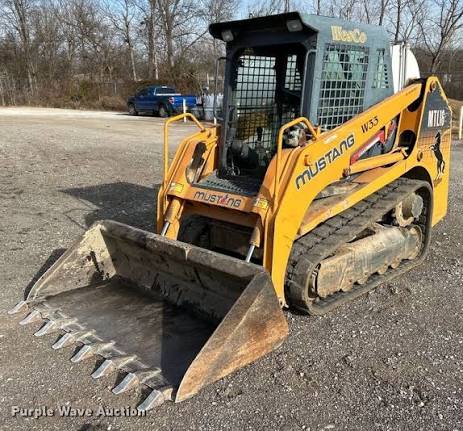

MTL16
- Operating Weight
- 7,498 lb
- Max Speed - high range
- 6.3 mph
- Displacement
- 201 in³
- Gross Power
- 65.8 hp
1 / 5
Image 1 of 5
Specifications
38 data points
Operating Specifications
| Operating Weight | 7,498 lb |
|---|---|
| Max Speed - high range | 6.3 mph |
| Max Speed - low range | 4.5 mph |
| Fuel Capacity | 19.9 gal |
| Hydraulic System Fluid Capacity | 15.8 gal |
| Cooling System Fluid Capacity | 3.0 gal |
| Operating Voltage | 12 V |
| Alternator Supplied Amperage | 40 A |
| Engine Oil Capacity | 2.7 gal |
Engine
| Engine Model | 4TNV98 |
|---|---|
| Displacement | 201 in³ |
| Power Measured @ | 2,400 rpm |
| Gross Power | 65.8 hp |
| Number of Cylinders | 4 |
| Aspiration | natural |
| Torque Measured @ | 1,600 rpm |
| Peak Torque | 180 lb-ft |
Hydraulic System
| Pump Flow | 18.0 gal/min |
|---|---|
| Relief Valve Pressure | 2,988 psi |
Dimensions
| Ground Clearance | 12 in |
|---|---|
| Height - Top of Cab | 84 in |
| Reach at Max Lift and Dump | 33 in |
| Width Over Tracks | 62 in |
| Length with Bucket | 141 in |
| Clearance at Max Lift and Dump | 94 in |
| Turning Radius from Center - inc bucket | 93 in |
| Turning Radius from Center - machine rear | 61 in |
| Length - without Bucket | 109 in |
Undercarriage
| Ground Pressure | 5 psi |
|---|---|
| Length of Track on Ground | 55 in |
| Width of Track | 13 in |
| Number of Track Rollers per Side | 4 |
| Ground Contact Area | 689 in³ |
| Track Gauge | 50 in |
Loader
| Bucket Capacity | 0.60 yd³ |
|---|---|
| Tipping Angle | 4,630 ° |
| Operating Load | 2,315 lb |
| Breakout Force | — |
