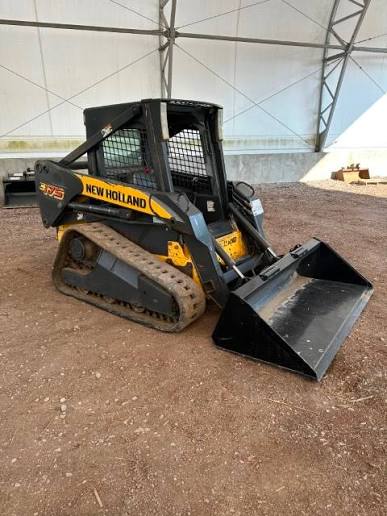

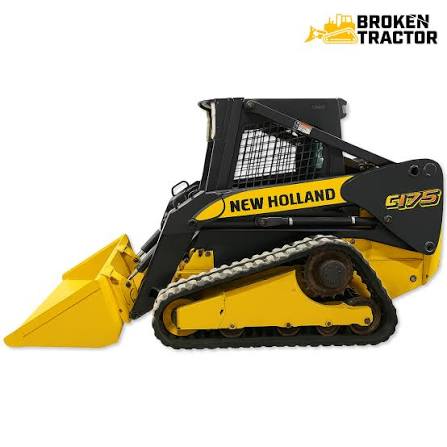

New Holland
C175
- Operating Weight
- 7,535 lb
- Max Speed - high range
- 7.4 mph
- Displacement
- 135 in³
- Gross Power
- 60.0 hp
1 / 5
Image 1 of 5
Specifications
37 data points
Operating Specifications
| Operating Weight | 7,535 lb |
|---|---|
| Max Speed - high range | 7.4 mph |
| Max Speed - low range | 5.6 mph |
| Fuel Capacity | 14.4 gal |
| Hydraulic System Fluid Capacity | 8.6 gal |
| Cooling System Fluid Capacity | 4.5 gal |
| Operating Voltage | 12 V |
| Alternator Supplied Amperage | 55 A |
| Engine Oil Capacity | 2.1 gal |
Engine
| Engine Model | N844LT |
|---|---|
| Displacement | 135 in³ |
| Power Measured @ | 2,900 rpm |
| Gross Power | 60.0 hp |
| Net Power | 56.0 hp |
| Number of Cylinders | 4 |
| Aspiration | Turbochaged |
| Torque Measured @ | 1,700 rpm |
| Peak Torque | 128 lb-ft |
Hydraulic System
| Pump Flow | 17.2 gal/min |
|---|---|
| Relief Valve Pressure | 2,600 psi |
| Pump Type | Gear Type |
Dimensions
| Ground Clearance | 8 in |
|---|---|
| Height - Top of Cab | 76 in |
| Reach at Max Lift and Dump | 31 in |
| Width Over Tracks | 72 in |
| Length with Bucket | 130 in |
| Clearance at Max Lift and Dump | 146 in |
| Turning Radius from Center - inc bucket | 78 in |
Undercarriage
| Ground Pressure | 5 psi |
|---|---|
| Length of Track on Ground | 57 in |
| Width of Track | 13 in |
| Number of Track Rollers per Side | 3 |
| Track Gauge | 59 in |
Loader
| Bucket Capacity | 0.71 yd³ |
|---|---|
| Tipping Angle | 6,300 ° |
| Operating Load | 2,200 lb |
| Breakout Force | — |
