New Holland

DC180

Crawler Dozer

Operating Weight
38,017 lb
Max Speed - Forward
6.6 mph
Gross Power
180.0 hp
Net Power
179.0 hp
All crawler dozers

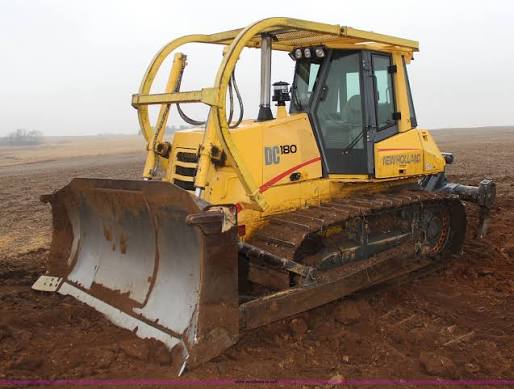

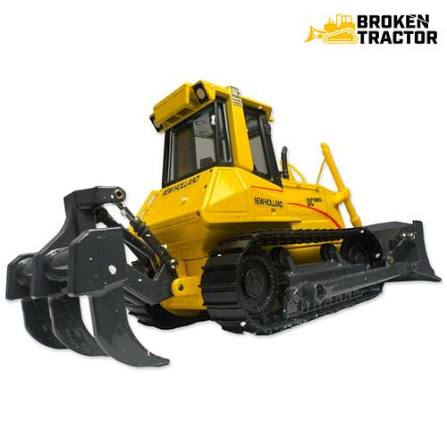

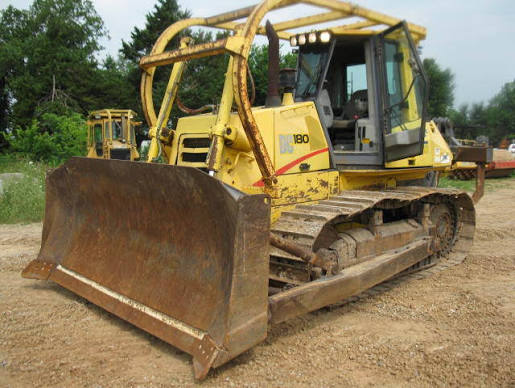

New Holland DC180 Crawler Dozer
1 / 5
Image 1 of 5
Image: brokentractor.com

Specifications

36 data points

Operating Specifications

Operating Specifications specifications
Operating Weight38,017 lb
Fuel Capacity105.7 gal
Cooling System Fluid Capacity7.4 gal
Final Drives Fluid Capacity4.8 gal
Engine Oil Capacity4.3 gal
Hydraulic Fluid Capacity29.1 gal
Operating Voltage24 V
Alternator Supplied Amperage70 A

Engine

Engine specifications
Engine Model6CT8.3
Displacement507 in³
Gross Power180.0 hp
Net Power179.0 hp
AspirationTurbocharged
Max Torque612 lb-ft

Hydraulic System

Hydraulic System specifications
Pump Flow Capacity65.6 gal/min
Relief Valve Pressure2,755 psi
Pump Typevariable displacement piston pump

Dimensions

Dimensions specifications
Ground Clearance16 in
Height - Top of Cab128 in
Length of Track on Ground127 in
Width Over Tracks83 in
Length w/ Blade217 in
Length w/o Blade167 in

Transmission

Transmission specifications
Max Speed - Forward6.6 mph
Max Speed - Reverse7.9 mph
Transmission Typefull powershift countershaft
Number of Forward Gears3
Number of Reverse Gears3

Undercarriage

Undercarriage specifications
Track Gauge76 in
Number of Track Rollers per Side7
Number of Shoes per Side40
Standard Shoe Size24 in

Standard Blade

Standard Blade specifications
Width135 in
Height56 in
Capacity7.40 yd³
Blade Angle (both directions)43 °
