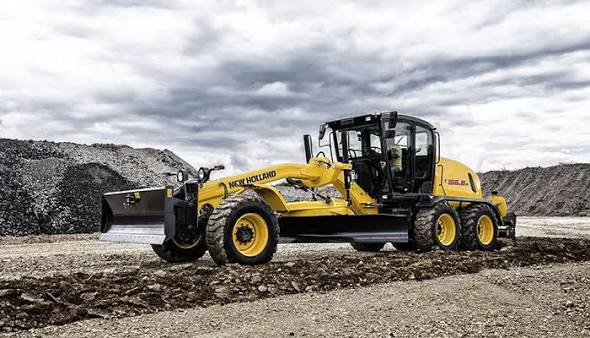

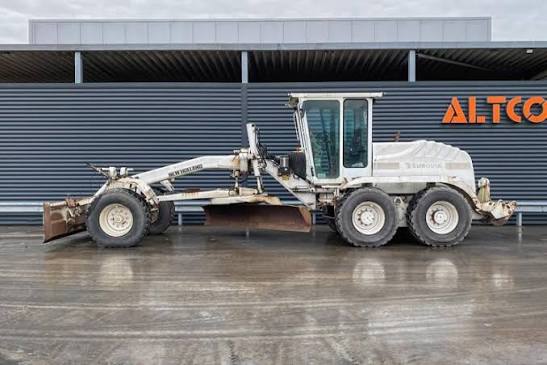

New Holland
Bolinder Munktell
VHK115
Motor Grader
37 specifications
1 / 5
Image 1 of 5
Specifications
53 data points
Operating Specifications
| Max Operation Weight - Total | 35,715 lb |
|---|---|
| Max Operation Weight - Front Axle | 11,464 lb |
| Max Operation Weight - Rear Axle | 25,353 lb |
| Std Operation Weight - Total | 31,605 lb |
| Tire Size | 17.5R25EM |
| Fuel Capacity | 72.7 gal |
| Std Operation Weight - Front Axle | 9,912 lb |
| Std Operation Weight - Rear Axle | 21,696 lb |
| Hydraulic System Fluid Capacity | 48.9 gal |
| Tandem Case Fluid Capacity (each) | 18.0 gal |
| Operating Voltage | 24 V |
| Alternator Supplied Amperage | 70 A |
| Transmission Fluid Capacity | 5.6 gal |
| Oil System Fluid Capacity | 3.4 gal |
Engine
| Engine Model | CNH 4-Stroke Diesel Engine |
|---|---|
| Displacement | 359 in³ |
| Power Measured @ | 2,100 rpm |
| Number of Cylinders | 6 |
| Aspiration | turbocharged water-cooled |
| Max Power | 175.0 hp |
| Net Power Gear 5-6 | 175.0 hp |
Hydraulic System
| Pump Flow | 33.3 gal/min |
|---|---|
| Pump Type | Swash Plate Variable Displacement |
| Relief Valve Pressure | 2,901 psi |
Dimensions
| Wheelbase | 236 in |
|---|---|
| Overall Length | 394 in |
| Width Over Tires | 103 in |
| Height to Top of Isomount Cab | 133 in |
| Blade Base | 100 in |
| Tandem Axle Wheelbase | 61 in |
| Front Ground Clearance | 6 in |
| Rear Ground Clearance | 13 in |
Transmission
| Max Speed - Forward | 23.3 mph |
|---|---|
| Max Speed - Reverse | 16.9 mph |
| Number of Gears - Forward | 6 |
| Number of Gears - Reverse | 3 |
| Transmission Type | Full Powershift Transmission |
Moldboard
| Moldboard Height | 6 in |
|---|---|
| Moldboard Width | 145 in |
| Moldboard Thickness | 1 in |
| Side Shift Left | 25 in |
| Side Shift Right | 30 in |
| Max Depth of Cut | 20 in |
Circle
| Max Lift Above Ground | 19 in |
|---|---|
| Max Reach Outside Tires - Left | 99 in |
| Max Reach Outside Tires - Right | 126 in |
| Shift Left | 25 in |
| Shift Right | 30 in |
Front Axle
| Wheel Lean | 21 ° |
|---|---|
| Oscillation - Total | 15 ° |
| Ground Clearance | 26 in |
Steering System
| Turning Radius | 324,804 in |
|---|---|
| Articulation Angle | 28 ° |
