Bolinder Munktell

VHK115

Motor Grader

Max Power
110.0 hp
Net Power Gears 7-8
110.0 hp
All motor graders

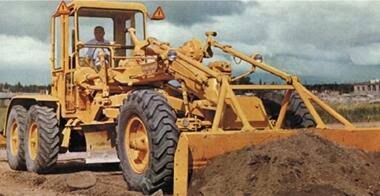

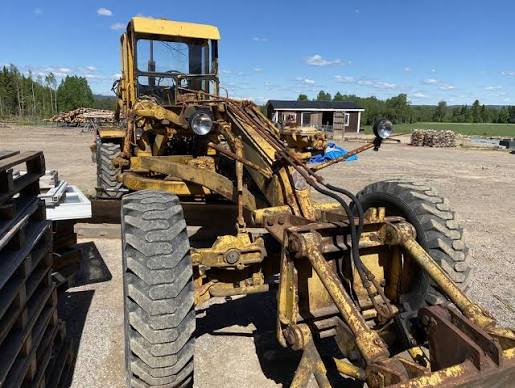

Bolinder Munktell VHK115 Motor Grader
1 / 5
Image 1 of 5
Image: truck1.fi

Specifications

37 data points

Operating Specifications

Operating Specifications specifications
Std Operation Weight - Total23,964 lb
Tire Size13.00-24 12ply
Fuel Capacity39.7 gal
Std Operation Weight - Front Axle6,923 lb
Std Operation Weight - Rear Axle17,042 lb
Operating Voltage24 V
Cooling System Fluid Capacity8.0 gal
Transmission Fluid Capacity19.6 gal
Circle Gearbox Fluid Capacity6.7 gal

Engine

Engine specifications
Engine ModelD67
Displacement411 in³
Max Power110.0 hp
Net Power Gears 7-8110.0 hp

Dimensions

Dimensions specifications
Wheelbase220 in
Overall Length306 in
Width Over Tires91 in
Height to Top of Isomount Cab120 in
Blade Base98 in
Tandem Axle Wheelbase60 in
Front Ground Clearance24 in

Transmission

Transmission specifications
Max Speed - Forward21.6 mph
Max Speed - Reverse5.1 mph
Number of Gears - Forward8
Number of Gears - Reverse2

Moldboard

Moldboard specifications
Moldboard Height22 in
Moldboard Width145 in
Moldboard Thickness1 in
Side Shift Left39 in
Side Shift Right39 in

Circle

Circle specifications
Max Lift Above Ground23 in
Max Reach Outside Tires - Left94 in
Max Reach Outside Tires - Right94 in
Diameter59 in
Rotation360 °

Front Axle

Front Axle specifications
Wheel Lean23 °
Ground Clearance24 in

Steering System

Steering System specifications
Turning Radius355 in

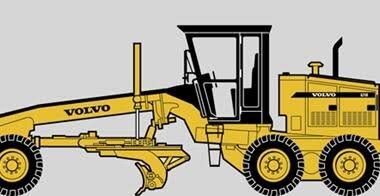

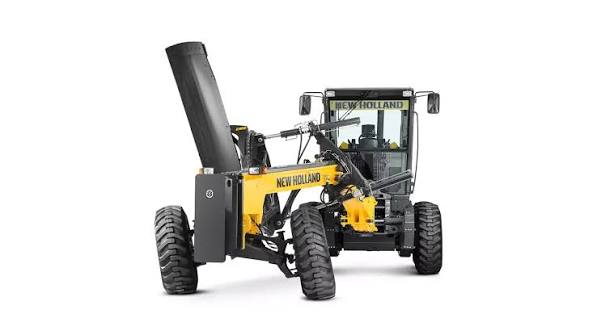

Comparable machines
