New Holland

RG140.B

Motor Grader

Max Operation Weight - Total
29,776 lb
Max Power
140.0 hp
Net Power Gears 7-8
140.0 hp
Net Power Gear 5-6
140.0 hp
All motor graders

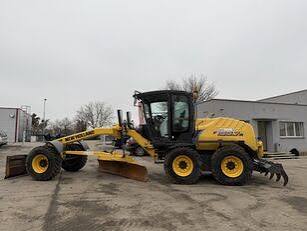

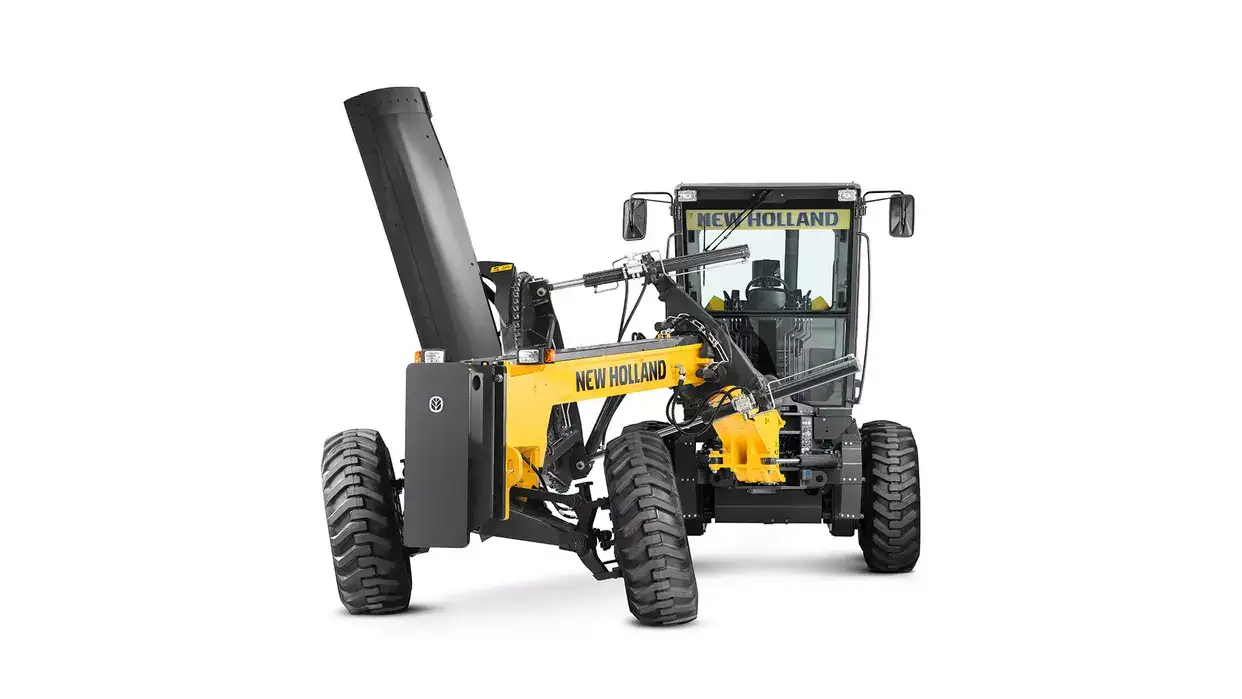

New Holland RG140.B Motor Grader
1 / 5
Image 1 of 5
Image: construction.newholland.com

Specifications

59 data points

Operating Specifications

Operating Specifications specifications
Max Operation Weight - Total29,776 lb
Max Operation Weight - Front Axle8,157 lb
Max Operation Weight - Rear Axle21,621 lb
Std Operation Weight - Total29,776 lb
Tire Size14x24 12 ply G2
Fuel Capacity90.1 gal
Std Operation Weight - Front Axle8,157 lb
Std Operation Weight - Rear Axle21,400 lb
Hydraulic System Fluid Capacity47.6 gal
Tandem Case Fluid Capacity (each)7.7 gal
Operating Voltage24 V
Cooling System Fluid Capacity10.6 gal
Alternator Supplied Amperage70 A
Transmission Fluid Capacity6.7 gal
Circle Gearbox Fluid Capacity0.8 gal
Rear Diff/Final Drive Fluid Capacity7.7 gal

Engine

Engine specifications
Engine ModelCummins 6A 5.9
Displacement360 in³
Power Measured @2,200 rpm
Number of Cylinders6
AspirationTurbocharged
Max Power140.0 hp
Net Power Gears 7-8140.0 hp
Net Torque Gears 7-8485 lb-ft
Net Power Gear 5-6140.0 hp

Hydraulic System

Hydraulic System specifications
Pump Flow50.5 gal/min
Pump Typefull hydraulic load sending variable displacement piston
Relief Valve Pressure2,600 psi

Dimensions

Dimensions specifications
Wheelbase246 in
Overall Length336 in
Width Over Tires100 in
Height to Top of Isomount Cab125 in
Blade Base102 in
Tandem Axle Wheelbase64 in
Rear Ground Clearance16 in

Transmission

Transmission specifications
Max Speed - Forward26.7 mph
Max Speed - Reverse18.7 mph
Number of Gears - Forward8
Number of Gears - Reverse4
Transmission Typedirect drive power shift

Moldboard

Moldboard specifications
Moldboard Height25 in
Moldboard Width145 in
Moldboard Thickness1 in
Side Shift Left21 in
Side Shift Right27 in
Max Depth of Cut28 in
Blade Down Pressure14,628 lb

Circle

Circle specifications
Max Lift Above Ground18 in
Max Reach Outside Tires - Left78 in
Max Reach Outside Tires - Right86 in
Diameter69 in
Blade Tip Angle - Front42 °
Rotation360 °
Blade Tip Angle - Rear5 °

Front Axle

Front Axle specifications
Wheel Lean25 °
Oscillation - Total20 °
Ground Clearance25 in

Steering System

Steering System specifications
Turning Radius285,433 in
Articulation Angle25 °
