Champion

730A

Motor Grader

Max Power
193.0 hp
All motor graders

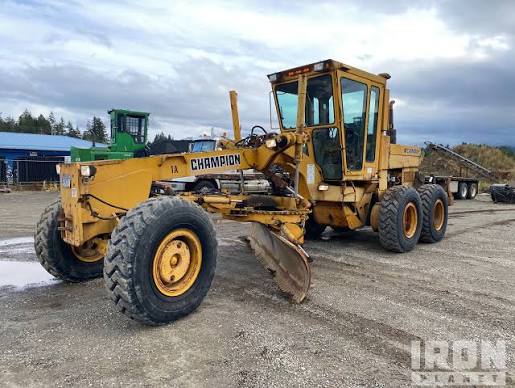

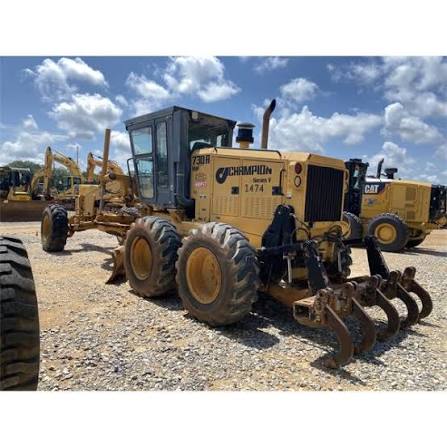

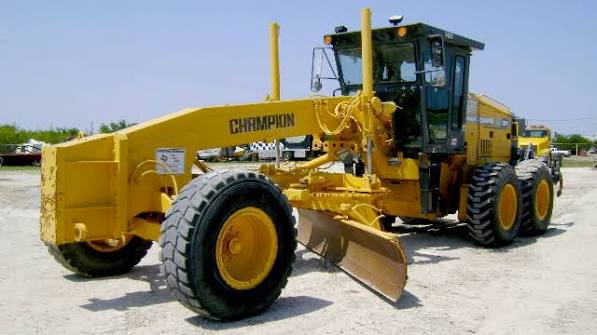

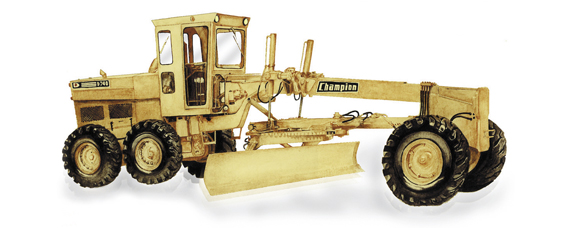

Champion 730A Motor Grader
1 / 5
Image 1 of 5
Image: sierrapark.org

Specifications

53 data points

Operating Specifications

Operating Specifications specifications
Std Operation Weight - Total33,220 lb
Tire Size14.00 * 24 G-2
Fuel Capacity100.0 gal
Std Operation Weight - Front Axle9,960 lb
Std Operation Weight - Rear Axle23,260 lb
Hydraulic System Fluid Capacity23.8 gal
Tandem Case Fluid Capacity (each)26.5 gal
Cooling System Fluid Capacity11.3 gal
Transmission Fluid Capacity10.3 gal
Rear Diff/Final Drive Fluid Capacity6.1 gal
Oil System Fluid Capacity10.1 gal

Engine

Engine specifications
Engine Model6CT8.3
Displacement505 in³
Power Measured @2,100 rpm
Number of Cylinders6
AspirationTurbocharged
Torque Measured @1,500 rpm
Bore5 in
Stroke5 in
Torque540 lb-ft
Max Power193.0 hp
Gross horsepower207.0 hp

Hydraulic System

Hydraulic System specifications
Pump Flow48.2 gal/min
Relief Valve Pressure2,500 psi

Dimensions

Dimensions specifications
Wheelbase240 in
Overall Length335 in
Overall Width101 in
Blade Base103 in
Tread Width82 in
Overall Height with cab134 in

Transmission

Transmission specifications
Max Speed - Forward26.3 mph
Max Speed - Reverse18.9 mph
Transmission TypePowershift

Moldboard

Moldboard specifications
Moldboard Height25 in
Moldboard Width145 in
Moldboard Thickness1 in
Side Shift Left27 in
Side Shift Right27 in
Max Reach outside - left118 in
Max Reach outside - right114 in

Circle

Circle specifications
Diameter66 in
Blade Tip Angle - Front44 °
Rotation360 °
Blade Tip Angle - Rear7 °
Shift Left26 in
Shift Right24 in
Blade cutting depth30 in
Blade ground clearance18 in

Front Axle

Front Axle specifications
Wheel Lean18 °
Oscillation - Total16 °
Ground Clearance25 in

Steering System

Steering System specifications
Turning Radius307 in
Articulation Angle22 °
