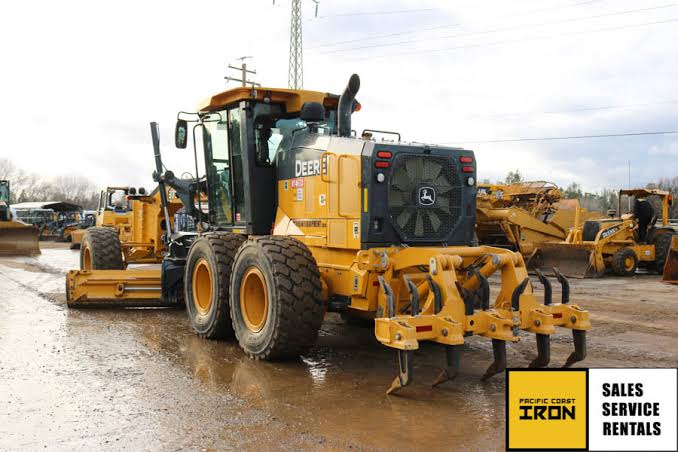

John Deere
Champion
730A
Motor Grader
53 specifications
1 / 5
Image 1 of 5
Specifications
18 data points
Operating Specifications
| Std Operation Weight - Total | 39,650 lb |
|---|---|
| Fuel Capacity | 110.0 gal |
| Std Operation Weight - Front Axle | 11,230 lb |
| Std Operation Weight - Rear Axle | 28,420 lb |
| Hydraulic System Fluid Capacity | 16.0 gal |
Engine
| Engine Model | PowerTech PSS 9.0L (Tier 4) |
|---|---|
| Displacement | 548 in³ |
| Max Power | 285.0 hp |
Hydraulic System
| Pump Flow | 57.5 gal/min |
|---|---|
| Pump Type | Variable axial piston |
| Relief Valve Pressure | 2,750 psi |
Dimensions
| Wheelbase | 244 in |
|---|---|
| Overall Length | 350 in |
| Height to Top of Isomount Cab | 126 in |
| Blade Base | 101 in |
Moldboard
| Moldboard Height | 27 in |
|---|---|
| Moldboard Width | 168 in |
| Moldboard Thickness | 1 in |
