New Holland

L180

Skid Steer Loader

Operating Weight
7,095 lb
Bucket Capacity
0.71 yd³
Max Speed
6.9 mph
All skid steer loaders

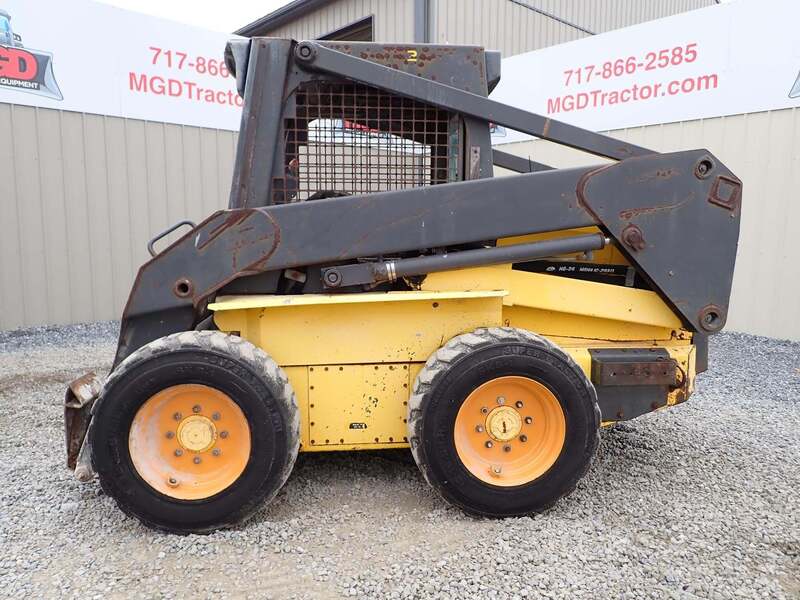

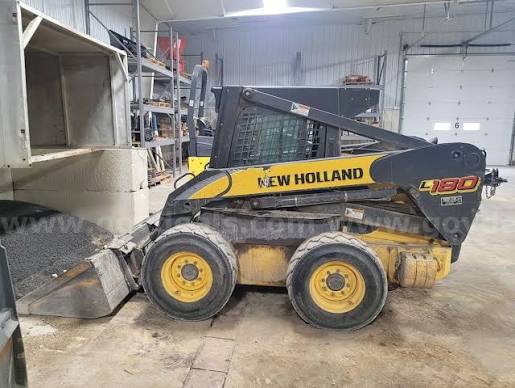

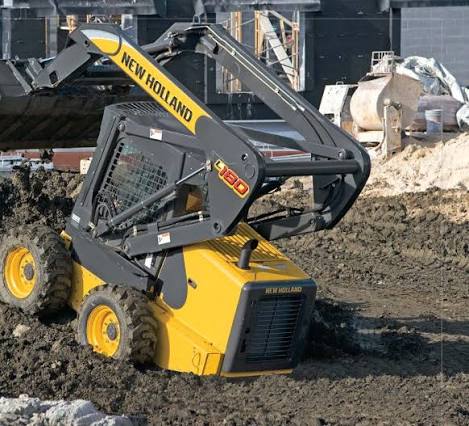

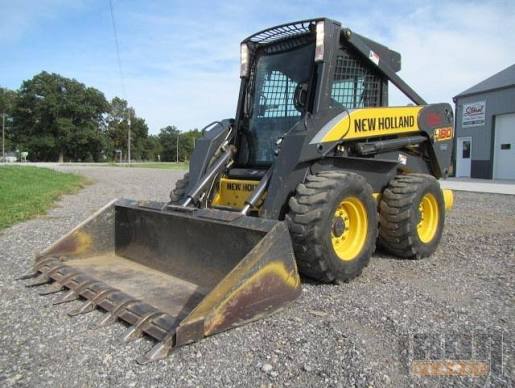

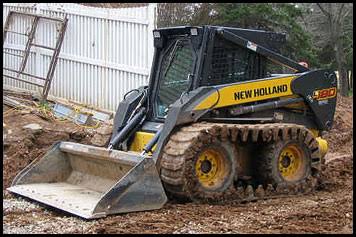

New Holland L180 Skid Steer Loader
1 / 5
Image 1 of 5
Image: machinerypete.com

Specifications

28 data points

Operating Specifications

Operating Specifications specifications
Operating Weight7,095 lb
Max Speed6.9 mph
Fuel Capacity18.0 gal
Hydraulic System Fluid Capacity15.0 gal
Tire Size12.0X16.5
Operating Voltage12 V
Alternator Supplied Amperage95 A
Engine Oil Fluid Capacity2.2 gal
Cooling System Fluid Capacity4.5 gal
Chain Box Fluid Capacity - each side2.7 gal
Operating Speed11.3 mph

Engine

Engine specifications
Engine Model334M2
Displacement208 in³

Hydraulic System

Hydraulic System specifications
Pump Flow Capacity34.7 gal/min
Relief Valve Pressure3,050 psi
Pump TypeGear type

Dimensions

Dimensions specifications
Ground Clearance8 in
Height - Top of Cab78 in
Wheelbase49 in
Width Over Tires72 in
Reach at Max Lift and Dump33 in
Length with Bucket139 in
Clearance at Max Lift and Dump151 in
Turning Radius from Center - inc bucket76 in

Loader

Loader specifications
Bucket Capacity0.71 yd³
Operating Load Rating2,200 lb
Tipping Angle4,400 °
Breakout Force6,034 psi
