New Holland

L185

Skid Steer Loader

Operating Weight
7,099 lb
Bucket Capacity
0.71 yd³
Max Speed
6.9 mph
All skid steer loaders

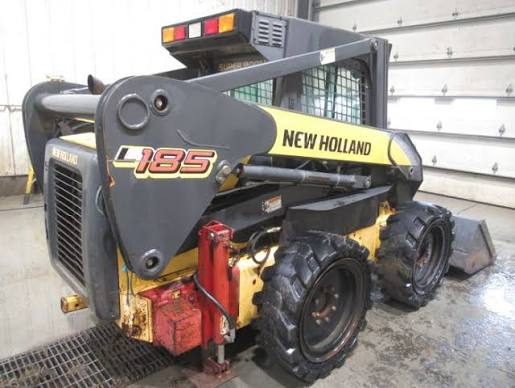

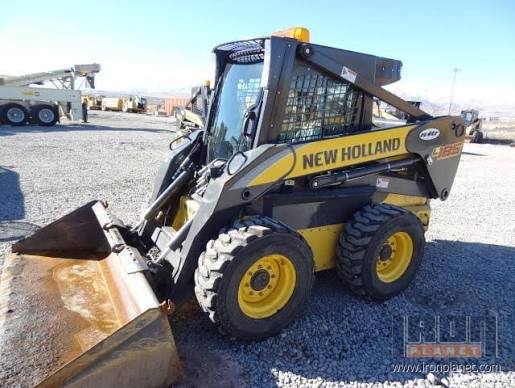

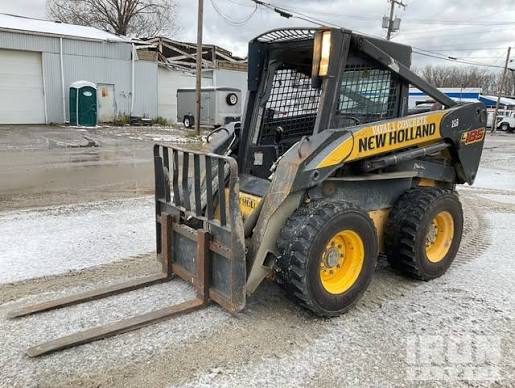

New Holland L185 Skid Steer Loader
1 / 5
Image 1 of 5
Image: partsasap.com

Specifications

30 data points

Operating Specifications

Operating Specifications specifications
Operating Weight7,099 lb
Max Speed6.9 mph
Fuel Capacity18.0 gal
Hydraulic System Fluid Capacity15.0 gal
Tire Size12.00X16.5
Operating Voltage12 V
Alternator Supplied Amperage95 A
Engine Oil Fluid Capacity2.2 gal
Cooling System Fluid Capacity4.5 gal
Chain Box Fluid Capacity - each side2.7 gal
Operating Speed11.3 mph

Engine

Engine specifications
Engine ModelF5CE5454
Displacement195 in³
Power Measured @2,300 rpm
Number of Cylinders4

Hydraulic System

Hydraulic System specifications
Pump Flow Capacity19.3 gal/min
Relief Valve Pressure3,050 psi
Pump TypeGear type

Dimensions

Dimensions specifications
Ground Clearance8 in
Height - Top of Cab78 in
Wheelbase49 in
Width Over Tires72 in
Reach at Max Lift and Dump33 in
Length with Bucket139 in
Clearance at Max Lift and Dump151 in
Turning Radius from Center - inc bucket76 in

Loader

Loader specifications
Bucket Capacity0.71 yd³
Operating Load Rating2,500 lb
Tipping Angle5,000 °
Breakout Force7,670 psi
