New Holland

LS170

Skid Steer Loader

Operating Weight
5,540 lb
Bucket Capacity
0.50 yd³
Max Speed
7.6 mph
All skid steer loaders

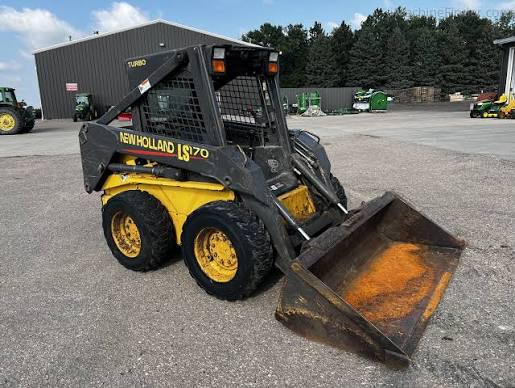

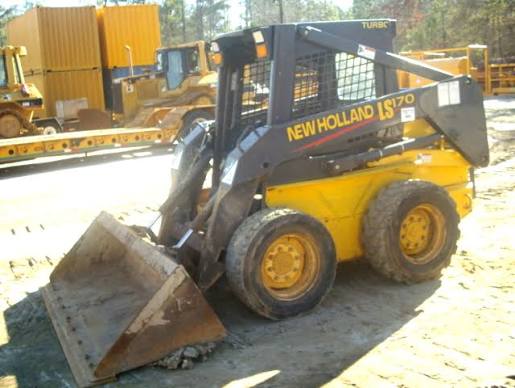

New Holland LS170 Skid Steer Loader
1 / 5
Image 1 of 5
Image: ebay.com

Specifications

31 data points

Operating Specifications

Operating Specifications specifications
Operating Weight5,540 lb
Max Speed7.6 mph
Fuel Capacity14.4 gal
Hydraulic System Fluid Capacity8.7 gal
Tire Size10x16.5
Operating Voltage12 V
Alternator Supplied Amperage40 A
Engine Oil Fluid Capacity2.2 gal
Cooling System Fluid Capacity2.7 gal
Chain Box Fluid Capacity - each side3.3 gal

Engine

Engine specifications
Engine ModelN844T
Displacement122 in³
Power Measured @2,900 rpm
Number of Cylinders4
AspirationTurbocharged

Hydraulic System

Hydraulic System specifications
Pump Flow Capacity24.5 gal/min
Relief Valve Pressure2,600 psi
Pump TypeNew Holland double acting

Dimensions

Dimensions specifications
Ground Clearance8 in
Height - Top of Cab76 in
Wheelbase43 in
Width Over Tires66 in
Reach at Max Lift and Dump29 in
Length with Bucket126 in
Clearance at Max Lift and Dump91 in
Turning Radius from Center - inc bucket74 in
Turning Radius from Center - machine rear60 in

Loader

Loader specifications
Bucket Capacity0.50 yd³
Operating Load Rating1,766 lb
Tipping Angle2,851 °
Breakout Force3,719 psi
