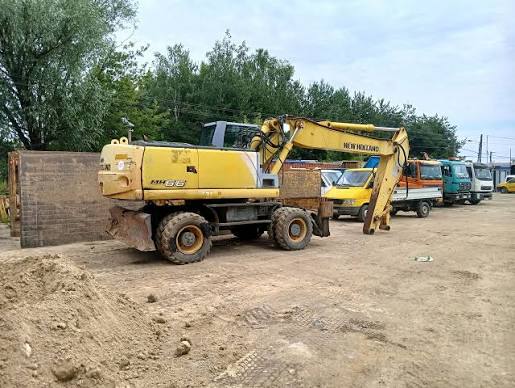

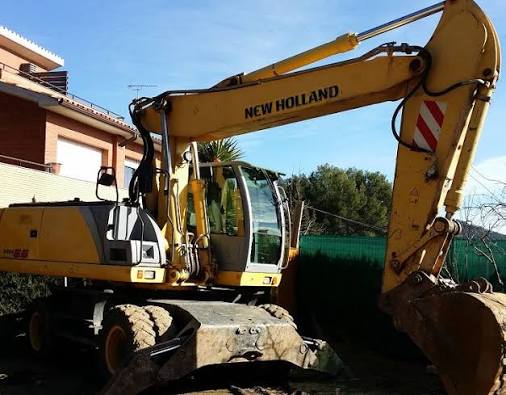

New Holland
Link Belt
130 X2
Excavator
48 specifications
.jpg)
1 / 5
Image 1 of 5
Specifications
50 data points
Operating Specifications
| Operating Weight | 47,355 lb |
|---|---|
| Fuel Capacity | 85.9 gal |
| Hydraulic Pump Flow Capacity | 135.3 gal/min |
| Hydraulic System Fluid Capacity | 42.3 gal |
| Hydraulic System Relief Valve Pressure | 5,004 psi |
| Engine Oil Capacity | 4.3 gal |
| Cooling System Fluid Capacity | 8.0 gal |
| Operating Voltage | 24 V |
| Alternator Supplied Amperage | 70 A |
| Hydraulic Pump Type | 3 Variable Displacement Axial Piston |
| Tire Size | 10.00-20 |
Engine
| Engine Model | CNH - F4BE0684A |
|---|---|
| Displacement | 360 in³ |
| Net Power | 166.0 hp |
| Number of Cylinders | 6 |
| Aspiration | turbocharger and charge air cooling |
Dimensions
| Ground Clearance | 13 in |
|---|---|
| Height - Top of Cab | 124 in |
| Wheelbase | 109 in |
| Overall Width | 8 in |
| Tail Swing Radius | 109 in |
| Upper Structure Clearance | 50 in |
| Overall Width - Outriggers Down | 154 in |
Transmission
| Max Travel Speed | 12.5 mph |
|---|---|
| Drawbar Pull | 29,225 lb |
Bucket
| Reference Bucket Capacity | 0.90 yd³ |
|---|---|
| Maximum Bucket Capacity | 1.50 yd³ |
| Minimum Bucket Capacity | 0.60 yd³ |
Swing Mechanism
| Swing Speed | 10 rpm |
|---|
Boom/Stick Mobile Excavator Option 1
| Max Digging Depth | 372 in |
|---|---|
| Max Cutting Height | 401 in |
| Max Reach Along Ground | 365 in |
| Max Loading Height | 285 in |
| Shipping Length of Unit | 372 in |
| Shipping Height of Unit | 125 in |
| Max Vertical Wall Dig Depth | 170 in |
Boom/Stick Mobile Excavator Option 2
| Max Digging Depth | 380 in |
|---|---|
| Max Cutting Height | 403 in |
| Max Reach Along Ground | 373 in |
| Max Loading Height | 289 in |
| Shipping Height of Unit | 125 in |
| Shipping Length of Unit | 372 in |
| Max Vertical Wall Dig Depth | 174 in |
Boom/Stick Mobile Excavator Option 3
| Max Digging Depth | 391 in |
|---|---|
| Max Cutting Height | 411 in |
| Max Reach Along Ground | 385 in |
| Max Loading Height | 298 in |
| Shipping Height of Unit | 128 in |
| Shipping Length of Unit | 371 in |
| Max Vertical Wall Dig Depth | 185 in |
