New Holland
Apache
AS1220
Sprayer
21 specifications
New Holland
SP275R
- Max Speed
- 28.5 mph
- Solution Tank Capacity
- 999.9 gal
- Displacement
- 409 in³
- Gross Power
- 275.0 hp
1 / 5

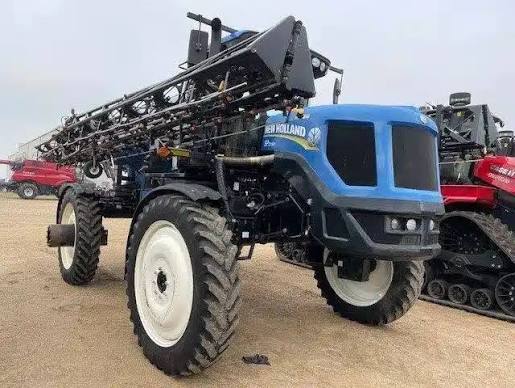

Image 1 of 5
Specifications
22 data points
Operating Specifications
| Solution Tank Capacity | 999.9 gal |
|---|---|
| Rinse Tank Capacity | 100.0 gal |
| Fuel Capacity | 120.0 gal |
| Dry Weight - max | 33,780 lb |
| Hydraulic System Fluid Capacity | 49.0 gal |
Engine
| Displacement | 409 in³ |
|---|---|
| Gross Power | 275.0 hp |
| Engine Make | Cummins QSB |
| Alternator | 160 A |
| Emission Tier Level | Tier III |
Dimensions
| Overall Length | 276 in |
|---|---|
| Transport Width | 144 in |
Transmission
| Max Speed | 28.5 mph |
|---|---|
| Transmission Type | Automatic/ Allison/ RDS 3000 |
| Number of Forward Gears | 6 |
Boom
| Max Boom Width | 1,080 in |
|---|---|
| Min Boom Width | 720 in |
| Max Adjustable Height | 80 in |
| Min Adjustable Height | 20 in |
| Nozzle Spacing | 15 in |
| Number of Sections | 5 |
| Number of Nozzles - max | 3 |
