New Holland

SP333F

Sprayer

Max Speed
26.8 mph
Solution Tank Capacity
1,199.9 gal
Displacement
507 in³
Gross Power
305.0 hp
All floaters/sprayers

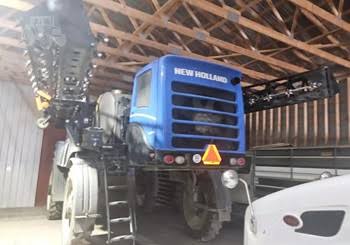

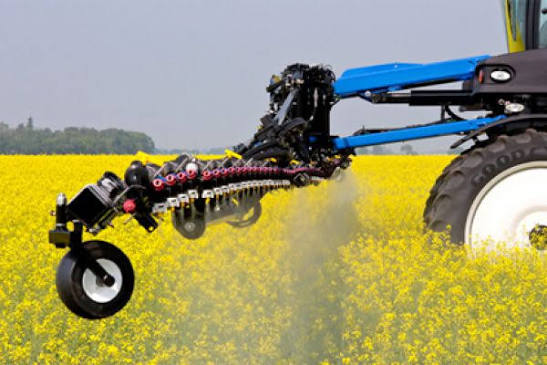

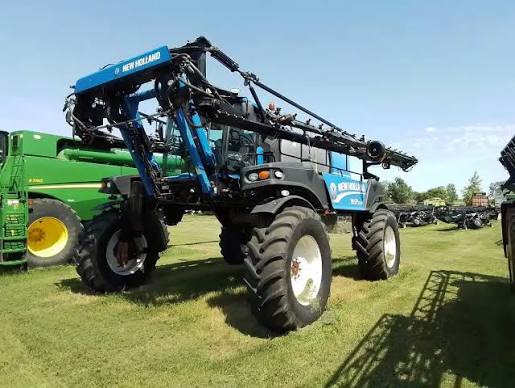

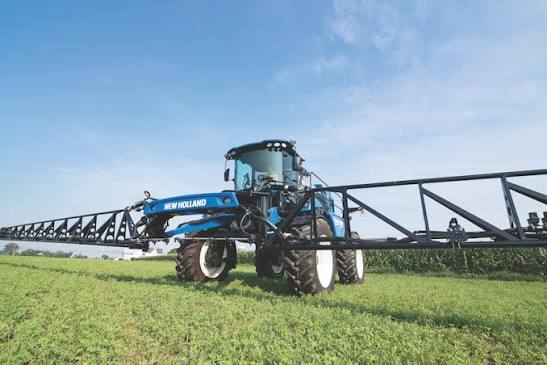

New Holland SP333F Sprayer
1 / 5
Image 1 of 5
Image: realagriculture.com

Specifications

21 data points

Operating Specifications

Operating Specifications specifications
Solution Tank Capacity1,199.9 gal
Rinse Tank Capacity150.0 gal
Fuel Capacity150.0 gal
Dry Weight - max33,780 lb

Engine

Engine specifications
Displacement507 in³
Gross Power305.0 hp
Engine MakeCummins QSL
Alternator160 A
Emission Tier LevelTier III

Dimensions

Dimensions specifications
Wheelbase178 in
Overall Length364 in
Transport Width128 in
Transport Height132 in
Tire Size320/90R50

Transmission

Transmission specifications
Max Speed26.8 mph
Transmission TypeHydrostatic drive with Twin Sundstran heavy duty pumps
Number of Forward Gears3

Boom

Boom specifications
Max Boom Width1,080 in
Min Boom Width720 in
Max Adjustable Height118 in
Min Adjustable Height22 in
