New Holland

T5.120

Tractor

Operating Weight
10,031 lb
Displacement
207 in³
Power Measured @
2,300 rpm
Gross Power
117.0 hp
All tractors

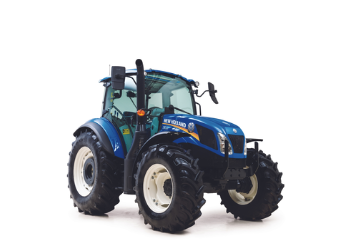

New Holland T5.120 Tractor
1 / 5
Image 1 of 5
Image: binghamequipment.com

Specifications

18 data points

Operating Specifications

Operating Specifications specifications
Operating Weight10,031 lb
Fuel Capacity43.6 gal
3 Point Hitch Lift Capacity @ 24 inches8,084 lb
DEF tank capacity3.2 gal

Engine

Engine specifications
Engine ModelF5G
Displacement207 in³
Power Measured @2,300 rpm
Gross Power117.0 hp
Number of Cylinders4
AspirationTurbo Charger with Air-to-Air Intercooled
Engine MakeFiat Powertrain Technology
PTO Power99.0 hp
Emissions CertificationTier 4B/Final

Hydraulic System

Hydraulic System specifications
Pump Flow Capacity11.4 gal/min

Dimensions

Dimensions specifications
Wheelbase95 in
Overall Length165 in
Height - Top of ROPS/FOPS108 in

Transmission

Transmission specifications
Max Speed24.9 mph
