New Holland

T9.060

Tractor

Operating Weight
54,000 lb
Displacement
915 in³
Power Measured @
2,000 rpm
Gross Power
589.0 hp
All tractors

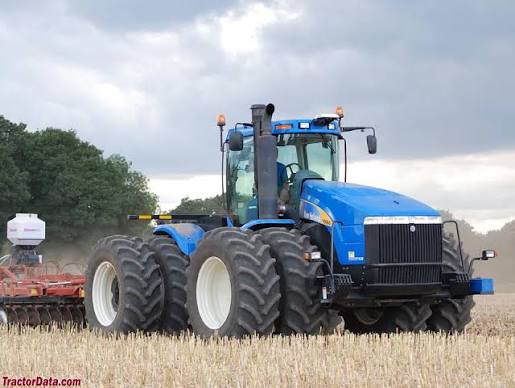

New Holland T9.060 Tractor
1 / 5
Image 1 of 5
Image: tractors.fandom.com

Specifications

30 data points

Operating Specifications

Operating Specifications specifications
Operating Weight54,000 lb
Fuel Capacity300.0 gal
3 Point Hitch Lift Capacity @ 24 inches19,621 lb
3 Point Hitch TypeCat IV-N
Turning Radius202 in
Alternator Supplied Amperage175 A
Operating Voltage12 V
Cooling System Fluid Capacity21.1 gal
Engine Oil Capacity13.0 gal
Drawbar Static Vertical Load Rating10,986 lb

Engine

Engine specifications
Engine ModelQSX15
Displacement915 in³
Power Measured @2,000 rpm
Gross Power589.0 hp
Net Power535.0 hp
AspirationTurbocharged air to air after cooled
Torque Rise40.0 %

Hydraulic System

Hydraulic System specifications
Pump Flow Capacity42.0 gal/min
Number of Remote Control Valves4

Dimensions

Dimensions specifications
Height - Top of Cab151 in
Wheelbase155 in
Overall Length25 in
Tire Size20.8R42
Width Outside Frame44 in

Transmission

Transmission specifications
Number of Forward Gears16
Transmission Typepowershift
Number of Reverse Gears2

Production

Production specifications
SeriesT9000 Series
Years Manufactured2,007 – 2,010

Axles

Axles specifications
Axle Diameter5 in
