New Holland
John Deere
8RT 335
Tractor
17 specifications

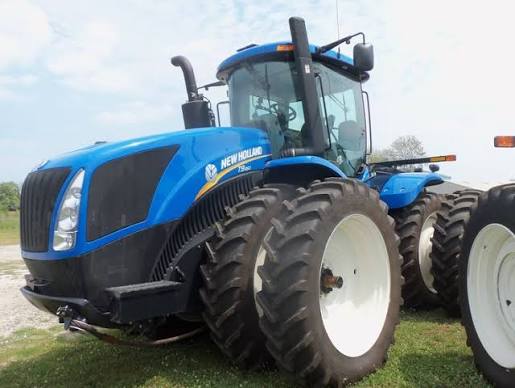

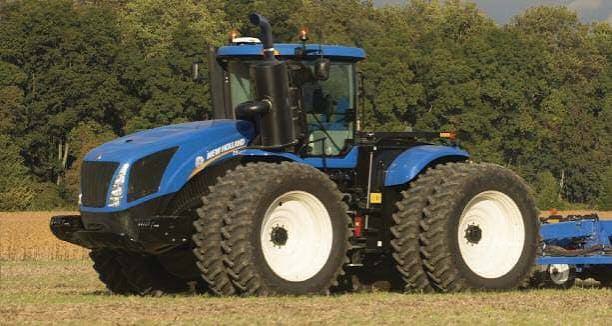

New Holland
T9.450
- Operating Weight
- 49,500 lb
- Displacement
- 787 in³
- Power Measured @
- 2,100 rpm
- Gross Power
- 405.0 hp
1 / 5
Image 1 of 5
Specifications
31 data points
Operating Specifications
| Operating Weight | 49,500 lb |
|---|---|
| Fuel Capacity | 230.0 gal |
| 3 Point Hitch Lift Capacity @ 24 inches | 20,000 lb |
| 3 Point Hitch Type | 4N/3 |
| Alternator Supplied Amperage | 200 A |
| Operating Voltage | 12 V |
| Cooling System Fluid Capacity | 21.2 gal |
| Engine Oil Capacity | 8.2 gal |
| DEF tank capacity | 46.0 gal |
Engine
| Displacement | 787 in³ |
|---|---|
| Power Measured @ | 2,100 rpm |
| Gross Power | 405.0 hp |
| Number of Cylinders | 6 |
| Aspiration | Turbocharged |
| Engine Make | New Holland |
| PTO Power | 400.1 hp |
| Stroke | 6 in |
| Bore | 5 in |
Hydraulic System
| Pump Flow Capacity | 45.0 gal/min |
|---|---|
| Number of Remote Control Valves | — |
| Relief Valve Pressure | 2,000 psi |
| Hydraulic System Type | Closed center load sensing |
Dimensions
| Wheelbase | 148 in |
|---|---|
| Overall Length | 295 in |
| Width | 37 in |
| Front Axle Clearance | 120 in |
Transmission
| Number of Forward Gears | 16 |
|---|---|
| Transmission Type | Full power shift |
| Number of Reverse Gears | 2 |
Production
| Series | T9 Series |
|---|---|
| Years Manufactured | 2,011 – 2,014 |
