New HollandNew Holland
TC35
Tractor
21 specifications
New Holland
TC29D
- Operating Weight
- 2,474 lb
- Displacement
- 81 in³
- Power Measured @
- 2,800 rpm
- Gross Power
- 29.0 hp
1 / 5

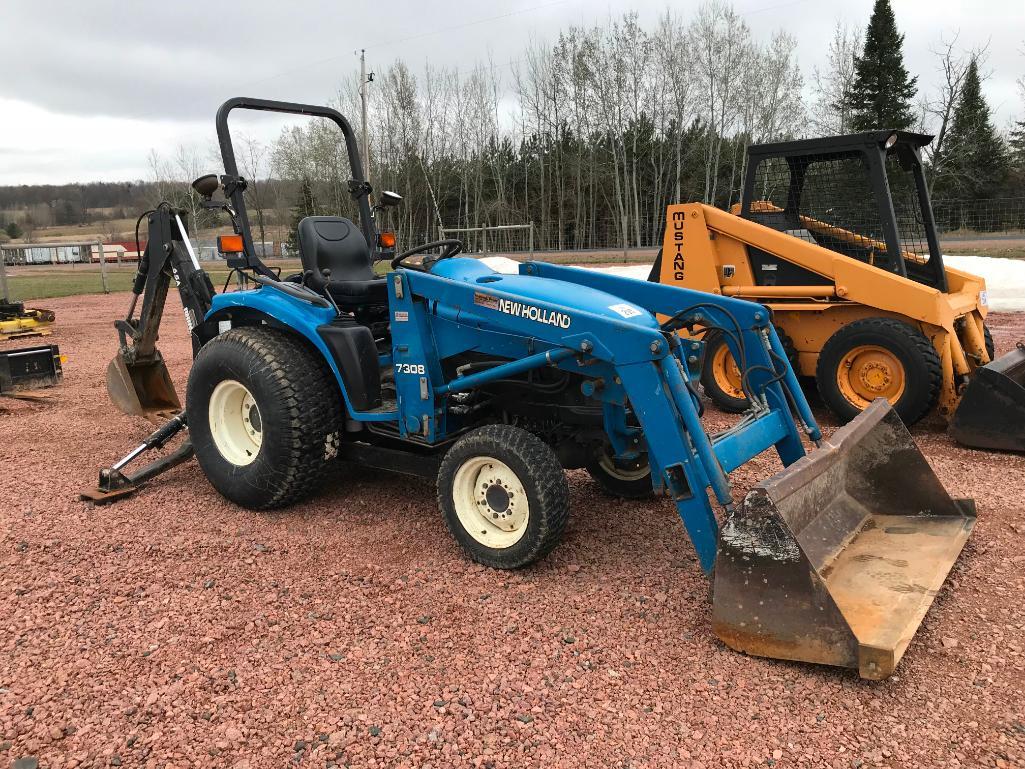

Image 1 of 5
Specifications
20 data points
Operating Specifications
| Operating Weight | 2,474 lb |
|---|---|
| Fuel Capacity | 7.3 gal |
| 3 Point Hitch Lift Capacity @ 24 inches | 1,635 lb |
| Turning Radius | 97 in |
Engine
| Displacement | 81 in³ |
|---|---|
| Power Measured @ | 2,800 rpm |
| Gross Power | 29.0 hp |
| Number of Cylinders | 3 |
| PTO Power | 25.1 hp |
Hydraulic System
| Pump Flow Capacity | 12.7 gal/min |
|---|
Dimensions
| Ground Clearance | 14 in |
|---|---|
| Height - Top of Cab | 89 in |
| Wheelbase | 64 in |
| Overall Length | 9 in |
| Tire Size | Front 7x14 Rear 11.2x24 |
| Width Outside Frame | 55 in |
Transmission
| Max Speed | 12.8 mph |
|---|---|
| Number of Forward Gears | 9 |
| Transmission Type | Manual |
| Number of Reverse Gears | 3 |
