New Holland
Tata Hitachi
TWL3036

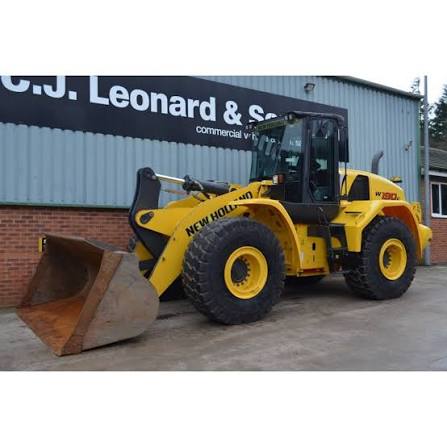

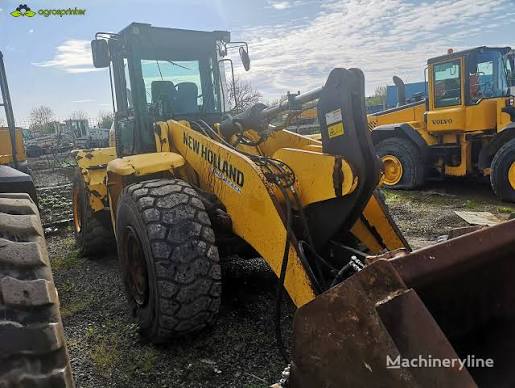

Wheel Loader
41 specifications
1 / 5
Image 1 of 5
Specifications
36 data points
Operating Specifications
| Operating Weight | 39,009 lb |
|---|---|
| Fuel Capacity | 76.1 gal |
| Tire Size | 235R25 |
| Hydraulic System Fluid Capacity | 47.6 gal |
| Operating Voltage | 24 V |
| Turning Radius | 264 in |
| Engine Oil Fluid Capacity | 4.0 gal |
| Alternator Supplied Amperage | 65 A |
| Cooling System Fluid Capacity | 8.0 gal |
| Transmission Fluid Capacity | 9.0 gal |
Engine
| Displacement | 409 in³ |
|---|---|
| Power Measured @ | 1,800 rpm |
| Net Power | 230.7 hp |
| Number of Cylinders | 6 |
| Torque Measured @ | 1,300 rpm |
| Max torque ISO TR14396 | 873 lb-ft |
Hydraulic System
| Pump Flow Capacity | 63.5 gal/min |
|---|---|
| Raise Time | 6.2 s |
| Lower Time | 2.9 s |
| Dump Time | 1.2 s |
Dimensions
| Ground Clearance | 18 in |
|---|---|
| Height - Top of Cab | 137 in |
| Wheelbase | 132 in |
| Width Over Tires | 114 in |
| Reach at Max Lift and Dump | 47 in |
| Length with Bucket on Ground | 313 in |
| Hinge Pin - Max Height | 163 in |
Transmission
| Max Speed - Forward | 23.0 mph |
|---|---|
| Max Speed - Reverse | 15.6 mph |
| Transmission Type | Powershift |
| Number of Forward Gears | 4 |
| Number of Reverse Gears | 4 |
Bucket
| Bucket Capacity - heaped | 4.50 yd³ |
|---|---|
| Dump Clearance at Max Raise | 117 in |
| Breakout Force | 33,237 lb |
| Bucket Width | 117 in |
