New Holland

W270

Wheel Loader

Operating Weight
52,161 lb
Bucket Capacity - heaped
5.90 yd³
Net Power
275.0 hp
All wheel loaders

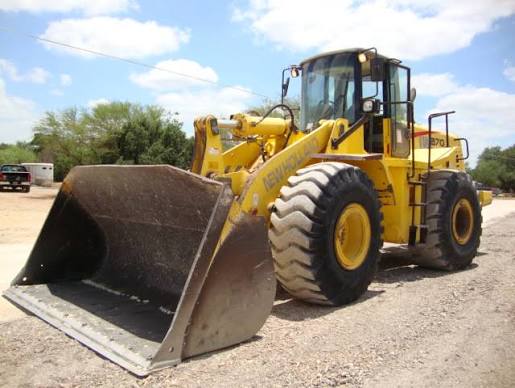

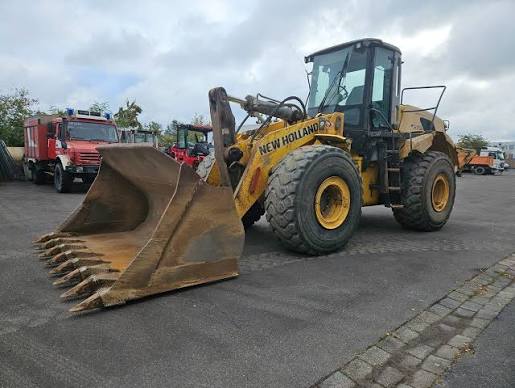

New Holland W270 Wheel Loader
1 / 5
Image 1 of 5
Image: lectura-specs.com

Specifications

43 data points

Operating Specifications

Operating Specifications specifications
Operating Weight52,161 lb
Fuel Capacity96.2 gal
Tire Size26.5-25 XHA
Hydraulic System Fluid Capacity38.1 gal
Static Tipping Weight42,660 lb
Operating Voltage24 V
Turning Radius272 in
Engine Oil Fluid Capacity9.0 gal
Rear Axle Oscillation26 °
Alternator Supplied Amperage70 A
Front Axle/Diff Fluid Capacity12.7 gal
Rear Axle/Diff Fluid Capacity12.7 gal
Cooling System Fluid Capacity20.4 gal
Transmission Fluid Capacity9.3 gal

Engine

Engine specifications
Engine ModelQSM11
Displacement659 in³
Power Measured @2,100 rpm
Net Power275.0 hp
Number of Cylinders6
Aspirationturbocharged aftercooled
Torque Measured @1,200 rpm

Hydraulic System

Hydraulic System specifications
Pump Flow Capacity102.5 gal/min
Raise Time6.2 s
Lower Time3.8 s
Dump Time1.4 s
Relief Valve Setting3,046 psi
Pump TypeSealed system with anticavitation and relief valves

Dimensions

Dimensions specifications
Ground Clearance20 in
Height - Top of Cab142 in
Wheelbase134 in
Width Over Tires118 in
Reach at Max Lift and Dump49 in
Length with Bucket on Ground347 in
Hinge Pin - Max Height174 in

Transmission

Transmission specifications
Max Speed - Forward23.0 mph
Max Speed - Reverse24.8 mph
Transmission TypePower-Shift Countershaft
Number of Forward Gears4
Number of Reverse Gears4

Bucket

Bucket specifications
Bucket Capacity - heaped5.90 yd³
Bucket Capacity - struck5.40 yd³
Breakout Force4,631,064 lb
Bucket Width119 in
