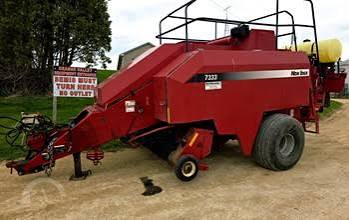

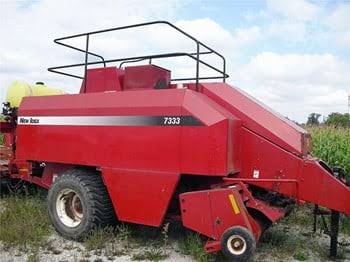

New Idea 7333 Baler
1 / 5
Image 1 of 5
Image: sloanex.com

Specifications

20 data points

Dimensions

Dimensions specifications
Overall Length355 in
Overall Width101 in
Overall Height125 in
Weight29,597 lb
Tractor PTO Power Required90.0 hp

Bale Size

Bale Size specifications
Bale Width32 in
Bale Length - max100 in
Bale Height35 in

Baler Pickup

Baler Pickup specifications
Overall Width91 in
Number of Bars4
Tine to Tine Width71 in
Number of Tines112
Lift TypeHydraulic Cylinder

Feeding Chamber

Feeding Chamber specifications
Packer TypeFork Type w/6 Hard Surfaced Tines
Stuffer TypeFork Type

Plunger

Plunger specifications
SPM41
Stroke Length28 in
Bearing Type4 Tapered Roller Bearings (Sealed) 2 Ball Bearing Rollers (Sealed)

Wrapping System

Wrapping System specifications
Twine Ball Capacity20
Twine Type4 Double Knot Type
