Nissan
Komatsu
FB15M-3
Forklift
22 specifications
1 / 5

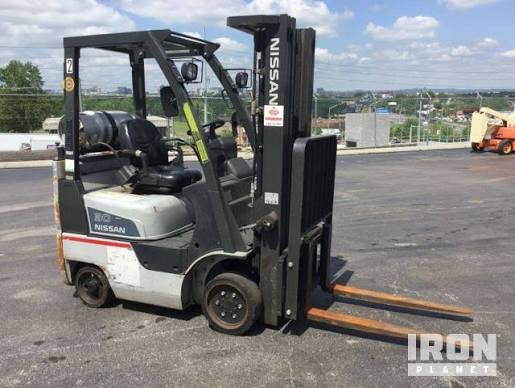

Image 1 of 5
Specifications
37 data points
Operating Specifications
| Operating Weight | 5,975 lb |
|---|---|
| Max Speed | 10.9 mph |
| Number of Front Wheels | 2 |
| Number of Rear Wheels | 2 |
| Tire Type | Cushion |
| Drawbar Pull | 3,417 lb |
Engine
| Engine Model | MCP1F1A15LV/DV |
|---|---|
| Displacement | 126 in³ |
| Power Measured @ | 2,700 rpm |
| Torque Measured @ | 2,000 rpm |
| Engine Make | Nissan |
| Power | 55.0 hp |
| Fuel Type | LP - G/LP |
| Torque | 111 lb-ft |
Dimensions
| Ground Clearance | 3 in |
|---|---|
| Wheelbase | 48 in |
| Overall Width | 39 in |
| Turning Radius | 69 in |
| Overall Height - mast lowered | 81 in |
| Length to Fork Face | 83 in |
| Gradeability | 20.0 % |
| Height to Top of Overhead Guard | 81 in |
| Max Fork Height | 131 in |
| Right Angle Stack | 84 in |
| Counterweight Clearance | 46 in |
| Free lift | 4 in |
| Fork Length | 42 in |
| Fork width | 4 in |
| Fork Thickness | 2 in |
Brakes & Steering
| Service brake | Drum and Shoe |
|---|---|
| Parking brake | Hand |
Tires & Wheels
| Rear Tires Size | 14 X 5 X 10 |
|---|---|
| Front Tires Size | 18 X 6 X 12.13 |
Mast
| Load Capacity | 3,000 lb |
|---|---|
| Load Center | 24 in |
| Lift Speed | 1.4 mph |
| Lower Speed | 1.1 mph |
