Nissan

CF60

Forklift

All forklifts

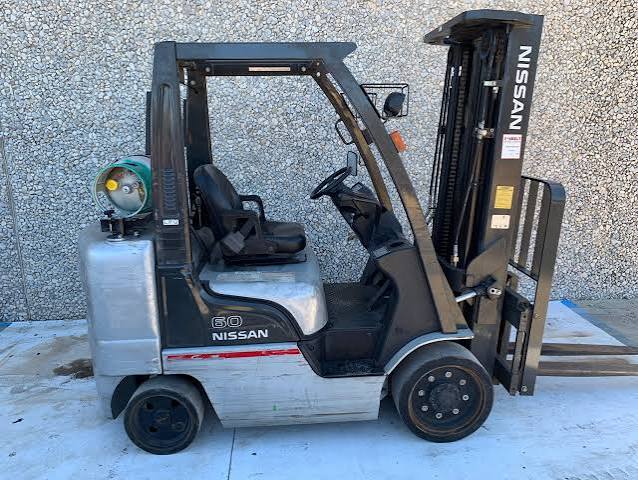

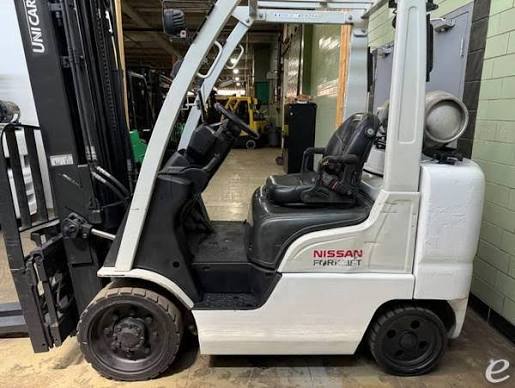

Nissan CF60 Forklift
1 / 5
Image 1 of 5
Image: 123forklift.com

Specifications

43 data points

Operating Specifications

Operating Specifications specifications
Operating Weight9,610 lb
Max Speed11.5 mph
Number of Front Wheels2
Number of Rear Wheels2
Tire TypeCushion
Drawbar Pull3,009 lb

Engine

Engine specifications
Engine ModelK25
Displacement152 in³
Power Measured @2,700 rpm
Torque Measured @1,600 rpm
Engine MakeNissan
Power62.9 hp
Torque139 lb-ft
Model NameCF60

Dimensions

Dimensions specifications
Ground Clearance3 in
Wheelbase60 in
Overall Width44 in
Turning Radius81 in
Overall Height - mast lowered84 in
Length to Fork Face97 in
Gradeability18.0 %
Height to Top of Overhead Guard83 in
Max Fork Height131 in
Right Angle Stack98 in
Angle of departure35 °
Counterweight Clearance47 in
Overhang Rear20 in
Overhang Front18 in
Fork width5 in
Fork Length42 in
Fork Thickness2 in
Approach Angle24 °

Transmission

Transmission specifications
Transmission TypeAutomatic
Number of Forward / Reverse Speeds2 – 1
SteeringFull Hydraulic

Brakes & Steering

Brakes & Steering specifications
Service brakeDrum and Shoe
Parking brakeHand

Mast

Mast specifications
Load Capacity6,000 lb
Load Center24 in
Lift Speed1.2 mph
Mast Tip Forward5 °
Mast Tip Rear10 °
Lower Speed1.1 mph
