Nissan
Toyota

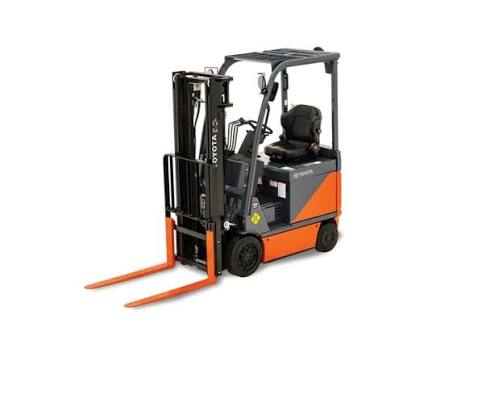

8FBCHU25
Forklift
29 specifications
1 / 5
Image 1 of 5
Specifications
43 data points
Operating Specifications
| Operating Weight | 10,460 lb |
|---|---|
| Max Speed | 11.5 mph |
| Number of Front Wheels | 2 |
| Number of Rear Wheels | 2 |
| Tire Type | Cushion |
| Drawbar Pull | 6,228 lb |
Engine
| Engine Model | K25 |
|---|---|
| Displacement | 152 in³ |
| Power Measured @ | 2,700 rpm |
| Torque Measured @ | 1,600 rpm |
| Engine Make | Nissan |
| Power | 62.9 hp |
| Torque | 139 lb-ft |
| Model Name | CF70 |
Dimensions
| Ground Clearance | 3 in |
|---|---|
| Wheelbase | 60 in |
| Overall Width | 47 in |
| Turning Radius | 83 in |
| Overall Height - mast lowered | 84 in |
| Length to Fork Face | 98 in |
| Gradeability | 18.0 % |
| Height to Top of Overhead Guard | 83 in |
| Max Fork Height | 124 in |
| Right Angle Stack | 101 in |
| Angle of departure | 32 ° |
| Counterweight Clearance | 47 in |
| Overhang Rear | 22 in |
| Overhang Front | 18 in |
| Fork width | 5 in |
| Fork Length | 42 in |
| Fork Thickness | 2 in |
| Approach Angle | 24 ° |
Transmission
| Transmission Type | Automatic |
|---|---|
| Number of Forward / Reverse Speeds | 2 – 1 |
| Steering | Full hydraulic |
Brakes & Steering
| Service brake | Drum and Shoe |
|---|---|
| Parking brake | Hand |
Mast
| Load Capacity | 7,000 lb |
|---|---|
| Load Center | 24 in |
| Lift Speed | 1.0 mph |
| Mast Tip Forward | 5 ° |
| Mast Tip Rear | 10 ° |
| Lower Speed | 0.9 mph |
